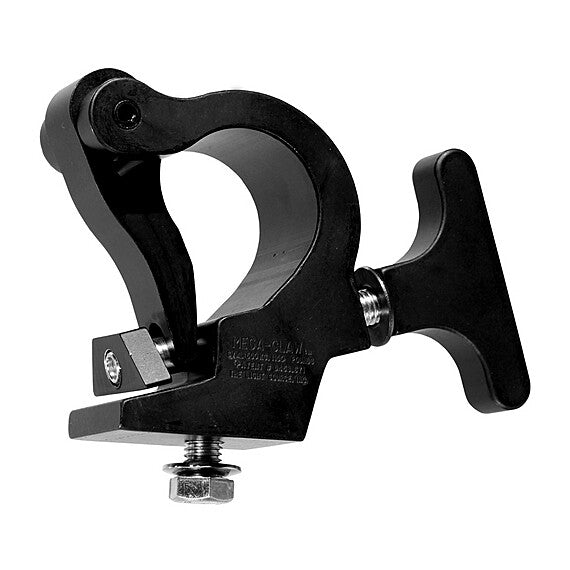

The Light Source (MWB) Mega Claw Clamp Black

The new standard truss clamp for hanging intelligent lighting fixtures. Allows one man to hang intelligent fixtures. Simply flip the link up, place the clamp over the pipe and the Mega-Claw holds the weight of the fixture while you secure it with the solid 3/4" thick handle. The Mega-Claw will fit onto (1-1/2" Pipe) 1.9" OD to 2" OD.

Minimum Size

1.5" pipe, 1.90" OD pipe

Maximum Size

2" OD truss tube

Working Load Limit

1,100 lb 500kg

Hardware

1/2"-13 x 1" Grade 5 hex head fixture mounting bolt 1" diameter 600 pound rated Belleville spring washer for tensioning 1/2"-13 x 4" trapezoidal head bolt for securing link to pipe

Dimensions

4.375" Tall x 6" Wide x 2" Thick
