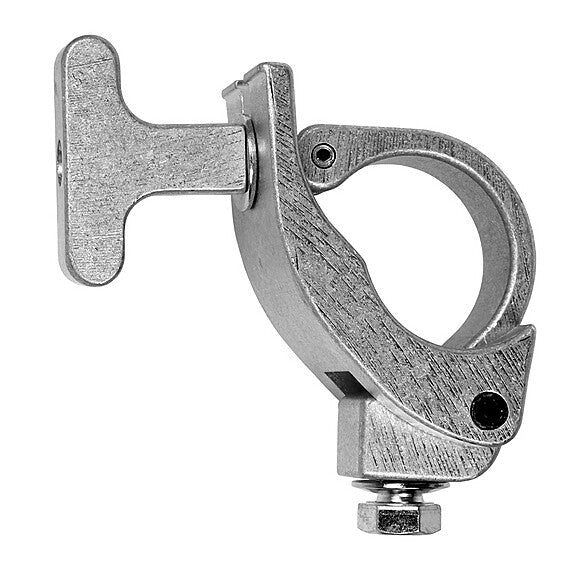

Fits from (1-1/4" pipe) 1.66" OD to 2" OD truss tube. The Mini-Claw is a light duty clamp, and is not designed to side arm fixtures. The Mini-Claw has a 1/2"-13 TPI by 3/4" long hex head grade 5 bolt for fastening to the fixture.

Minimum Size

1.25" pipe, 1.66" OD

Maximum Size

1.5" pipe, 1.90" OD pipe, 2" OD truss tube

Working Load Limit

150 lb

Hardware

1/2"-13tpi by 3/4" Long Hex Head Grade 5 bolt. 1" Belleville spring washer.

Dimensions

3 3/8" tall x 2" thick
