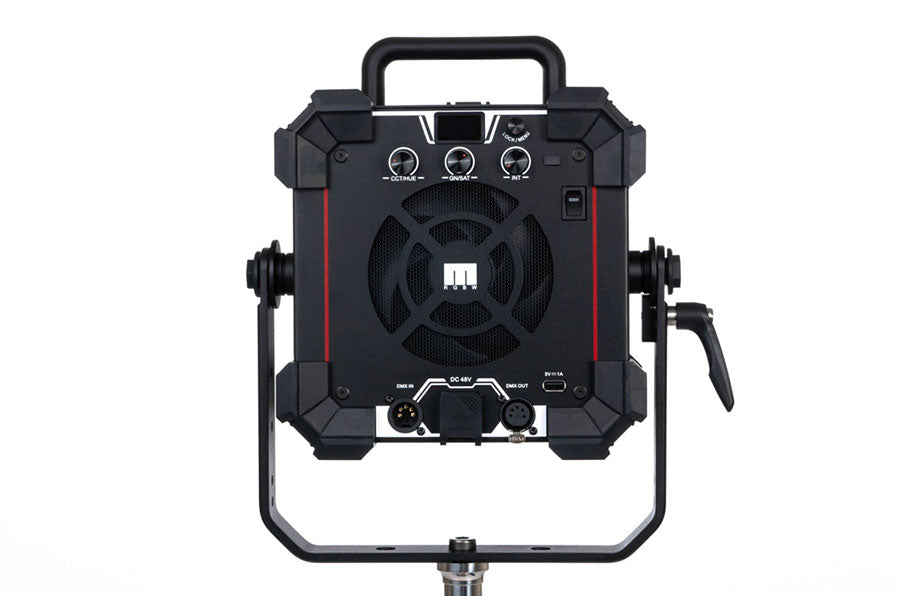

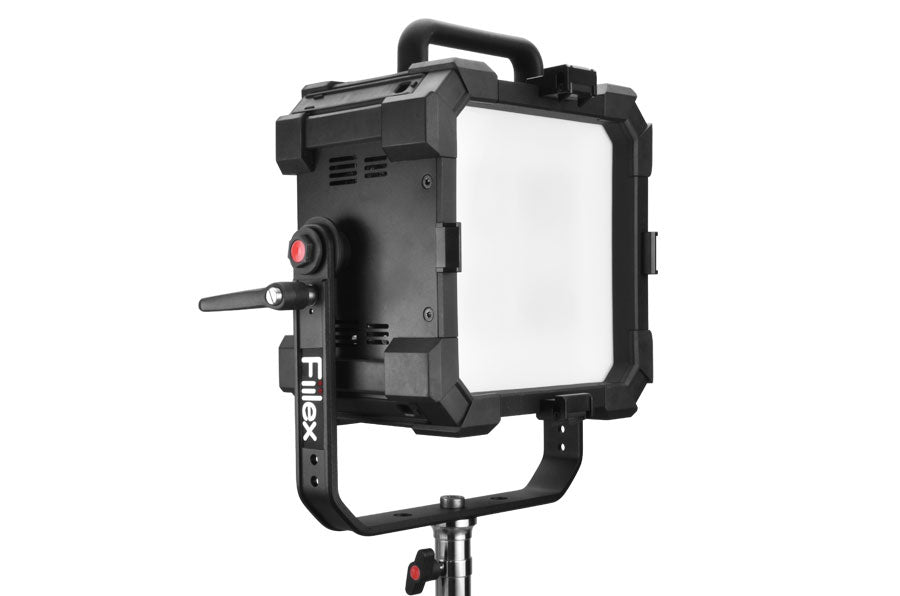

Fiilex Matrix-II RGBW Light Travel Kit

The Matrix II RGBW brings full-color control to Fiilex's Matrix line of soft-source LED punch lights. The Dense Matrix LEDs in the Matrix II RGBW boast multi-wavelength color groups. Other manufacturers have single chips in their array representing a hue range. Fiilex has designed its array with multiple custom chips covering a specific hue. Each chip outputs a specific portion of the hue wavelength and when combined produces a broader and deeper range of hue than other fixtures can produce.
The Matrix II RGBW fixture draws 340W of power and produces an output greater than a 1K tungsten soft light. This output is generated by the four Dense Matrix LED clusters that are set into a custom-designed reflecting chamber and enclosed by a layer of diffusion. With its four LED sources, the Matrix II supports additional optics and accessories that can easily reshape the fixture’s illumination. The fixture is compatible with light banks from Chimera as well as DoP Choice when using the speed ring accessory. It can also be used as a front-focused light with the optional Quad-Fresnel, which increases beam intensity by 3x. Includes:

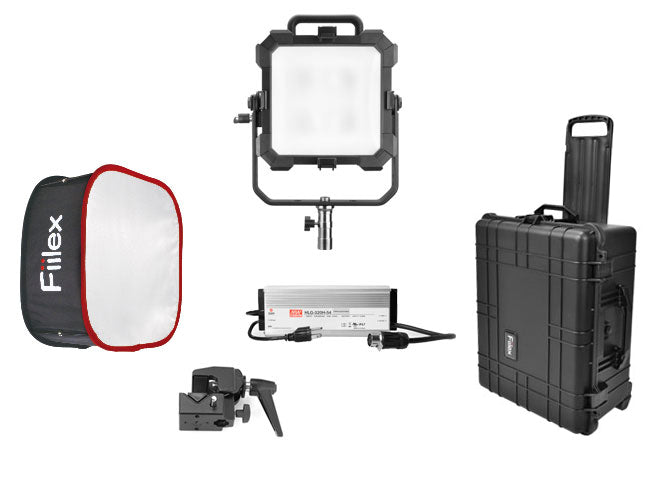

1 x Matrix II RGBW LED Light
1 x Power Adapter with Cable
1 x Popup Softbox
1 x Clamp Mount
1 x Hard Travel Case
Case Size 22.2" x 17.2" x 10.8" / 62.6 cm x 49.5 cm x 30.3 cm
Kit Weight 42lbs / 19.03kg

Features:

Full RGBW control
Custom multi-wavelength LED groups deliver rich, bright color
Smooth dimming down to 0% without flicker
RDM/DMX512
5V/1A USB powers wireless DMX
IP-24 weather resistant
XLR power input compatible with 48V battery power
Unique Fresnel accessory for increased punch
Future-proof: ability to upgrade firmware in the field
Compatible with industry-standard softboxes and octabanks via speed ring accessory
Very lightweight (9.7 lbs) vs. comparable RGB fixtures
Extreme durability with high-grade aluminum housing and ruggedized exterior
Single light kit falls within standard airline checked bag weight limits

Fresnel Size Optional Quad Fresnel Leans (Removable)
Beam Angle 99° (31° w/ Optional Quad Fresnel Lens)
CCT Range 2800-10000K Continuous Tuning
Hue Control ±0.25 Green/Magenta
CRI 95 Typical.
Dimming 100% - 0%(Cut off @ 0.1%)
LED (Four) 75W DiCon Dense Matrix LED
Input Power 120V-240VAC
Power Consumption 340W Max AC | 300W Max DC
Power Adapter AC Input: 100-240V AC, 50~60Hz | DC Output: 48V
DC Power Port XLR-3P
DMX Port Two XLR Ports-5P (512 Addresses)
USB 5V Yes
Weight Fixture: 9.7 lbs / 4.4kg (Includes Yoke)
Power Adapter: 5.7 lbs/2.6kg
Size L 6.7 ” x W 12.2 ” x H 16.5 ”
L 171mm x W 311mm x H 418mm
Mount Type IBaby Stud 5/8" Female (16mm) and
Junior Stud 1-1/8" Male (28mm)
Thermal Design Advanced Vapor Cooling System (Fan Cooled)
Operating Temperature 32-104ºF / 0-40º C
