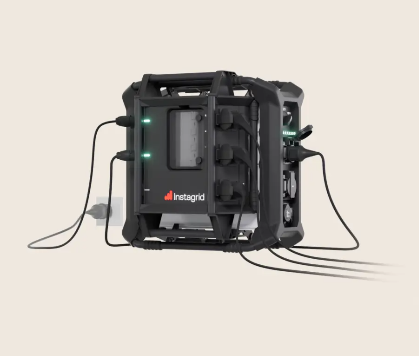

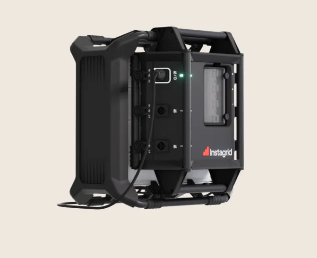

Instagrid LINK 24 – NEMA 5-20 | 120V | 20A | IP44

Instagrid LINK 24

The Instagrid LINK 24 is a robust, IP44-rated power distribution unit designed for professional use in entertainment, events, and production environments. Seamlessly integrates with Instagrid GO battery units for continuous, uninterrupted power delivery.

Key Features

• 3x NEMA 5-20R output sockets (20A each)
• 3x Neutrik powerCON® TRUE1 TOP input sockets for reliable connectivity
• IP44 / UL Rain Test rated — rainproof for outdoor use
• Residual current device (RCD) protection on all circuits (30mA, Type A UL)
• Switching time under 20ms for near-seamless source transitions

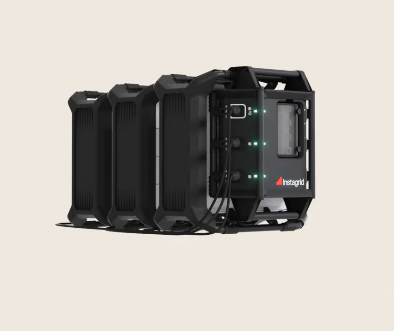

• Optimized for mounting on Instagrid GO units with 4 sturdy feet and solid frame
• LED status indicators: Active (blinking green), Ready/standby (solid white), Inactive (off), Service (solid/blinking red)

Technical Specifications

• Nominal Voltage Output: 120V AC / 60Hz
• Rated Output Current: 20A
• Rated Output Power: 2,400W
• Switching Time: <20ms
• RCD Protection: 3x 2P RCD Type A UL, 30mA
• Circuit Breaker: 1P 20A (tripping characteristic C)
• Weight: 9.9 lb / 4.5 kg
• Dimensions: 15.8 x 12.2 x 5.5 in / 400 x 310 x 140 mm
• IP Rating: IP44 / UL Rain Test (rainproof)
• Protection Class: Class I with Class II construction
• Operating Temperature: -4°F to 131°F / -20°C to 55°C
• Input Sockets: 3x Neutrik powerCON® TRUE1 TOP
• Output Sockets: 3x NEMA 5-20R 20A

Product Info

• Art.Nr.: 990-00005
• EAN/UPC: 4260710090111
• Version: 1.2 (June 2025)
