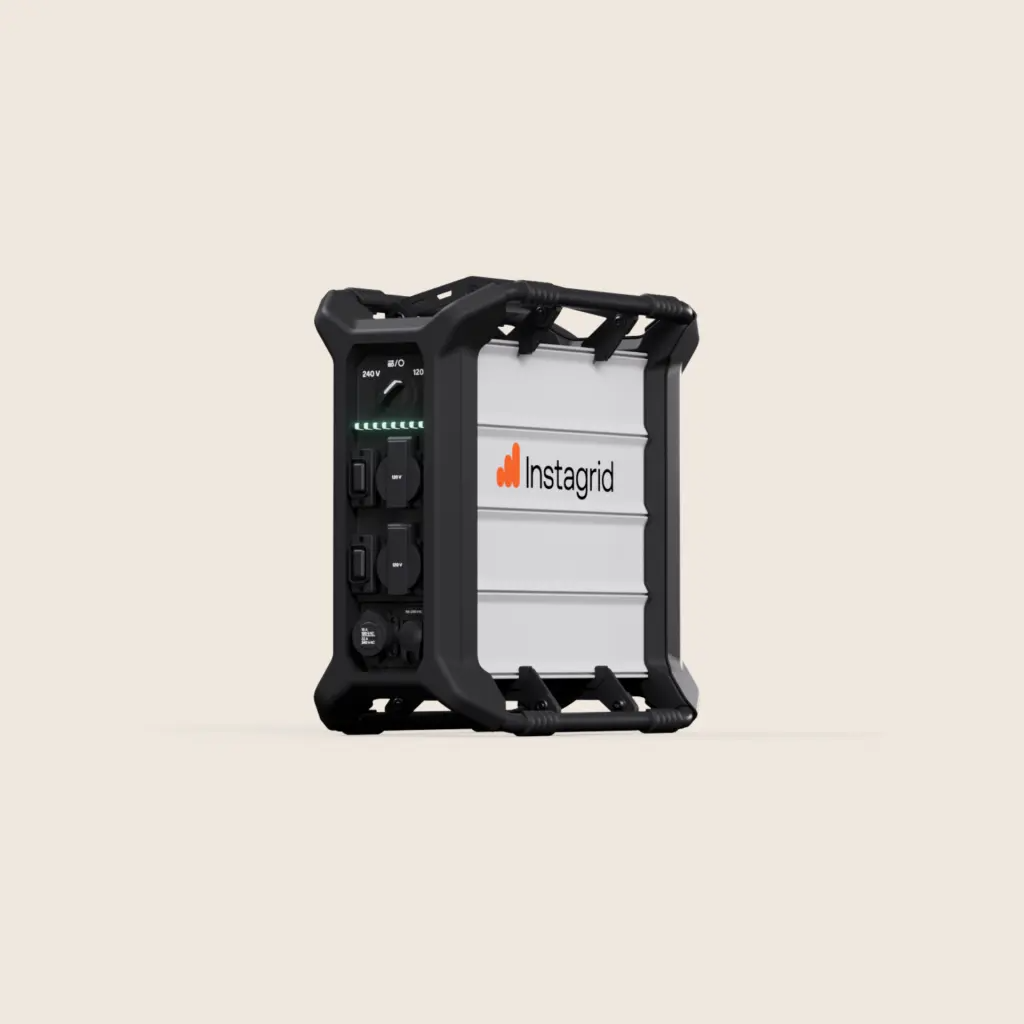

Instagrid GO 36 DV Battery

Instagrid GO Spec Sheet



Our portable battery power supply was designed, specifically for professional
applications, providing a power socket without constraints, wherever it is required.
Lightweight, robust, powerful and flexible. The new standard for mobile work.

How can something
so compact be so
powerful?

There are many mobile battery systems on the market, and they are more or less built the same way: a bank of batteries connected to a central inverter. We do things differently. We break down this central inverter into multiple micro-level inverters, each connected to an individual battery module. Using software and electronics, these modules work together to generate a pure AC sine wave.

This innovation is a significant advance in power conversion technology and enables Instagrid products to be drastically smaller, lighter, and more powerful than other battery systems.

Electrical:
Output voltage (switchable) - 120 V AC / 60 Hz or 240 V AC / 60 Hz
Weight - 46 lb
Rated power output - 3.6 kW (2 x 20 A)
Dimensions - 16.7 x 8.3 x 16.5 in
Rated battery capacity - 2.1 kWh
Protection class - Class II / double insulated
Charge duration - < 3 h to 100%
Noise emission - < 10 dB(A)
On (idle) - 150 h


Storage (switched off)
>3 years


Output socket
2 x Nema 5-20


Output socket
Instagrid Accessories Outlet capable of 240 V / 60 Hz


Input charging socket
Neutrik powerCON TRUE1 TOP®


Charging temperature
32 °F to 113 °F


Line protection
e-Fuse 32 A


Operating temperature
-4°F to 140°F
