GLD MagBlock 100

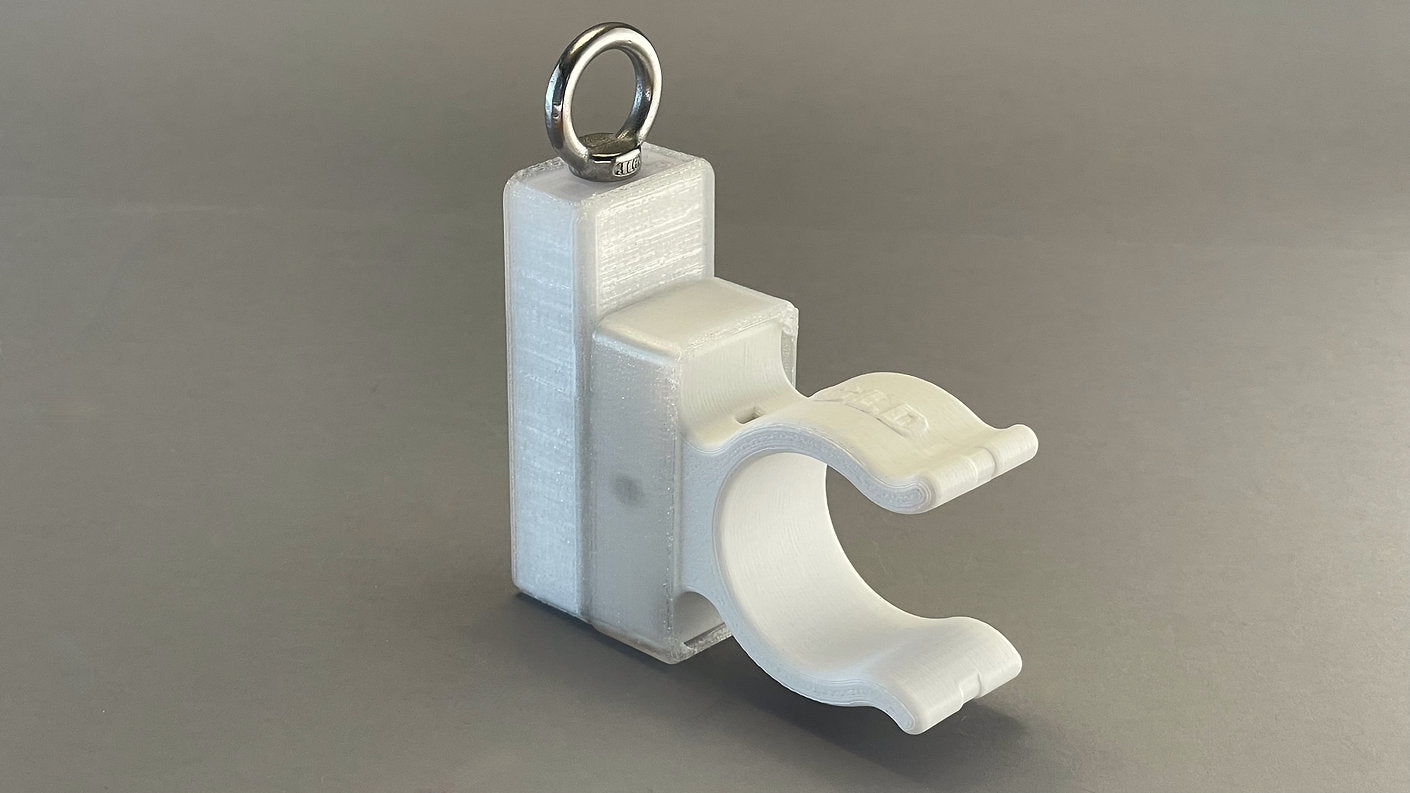

To be used in combination with the MagClip 100 to create a solid point for an Astera tube (or similar 1.7” (43mm) diameter fixture) when clamping onto or screwing into a surface isn't an option.

Place the MagClip 100 on one side of a surface and the MagBlock 100 on the other.  Includes a 1/4" UNC eyebolt for a point of attachment, or insert another similarly sized hardware.

PETG-CF (Carbon Fiber) option available for improved strength and higher temperature rating.

• SPECIFICATIONS

  Body 3D printed with PETG.

  • A quality plastic material with great strength and flexibility.  Rated up to 170°F (77°C).
  • Carbon Fiber option:  rated up to 266°F (130°C).

  Boot 3D printed with TPU.

  • A quality plastic material with a flexibility comparable to rubber.  Rated up to 221°F (105°C).

  DIMENSIONS

  •  4.05" x 1.29" x .79"  103x33x20mm)

  WEIGHT

  • 6.2 oz  (176g)

  MAGNET

  • N52 Neodymium
  • Approximate pull force ::: 93 lbs (42 kg).
