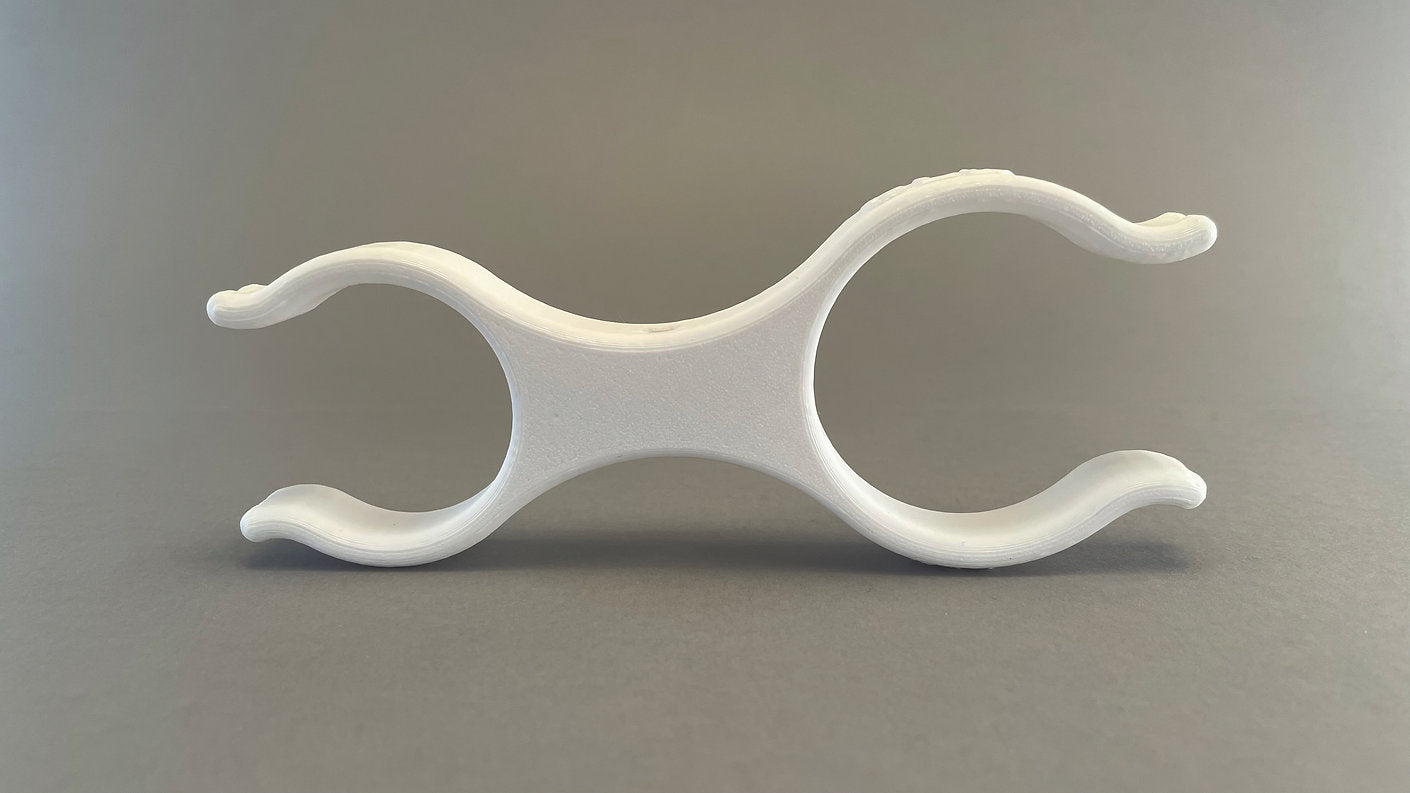

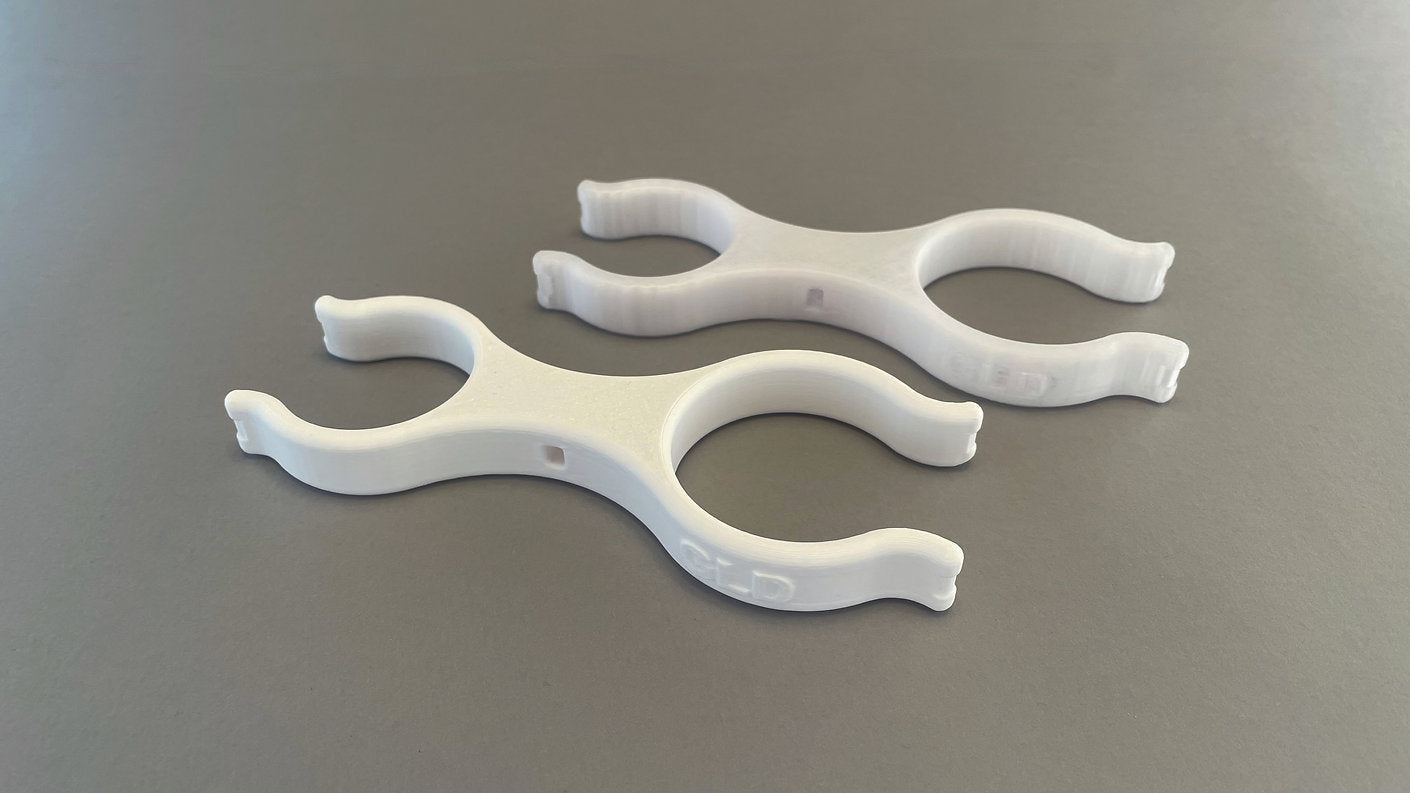

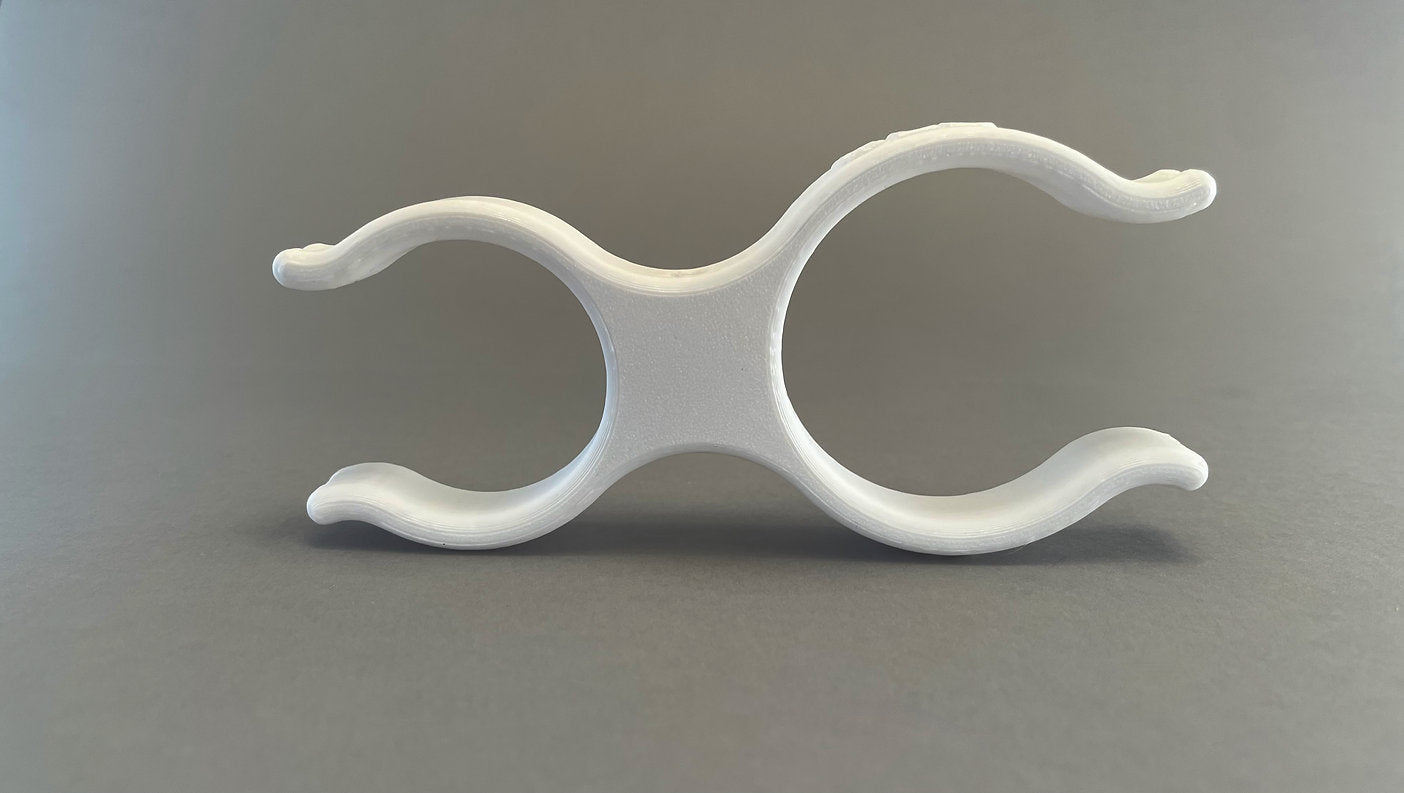

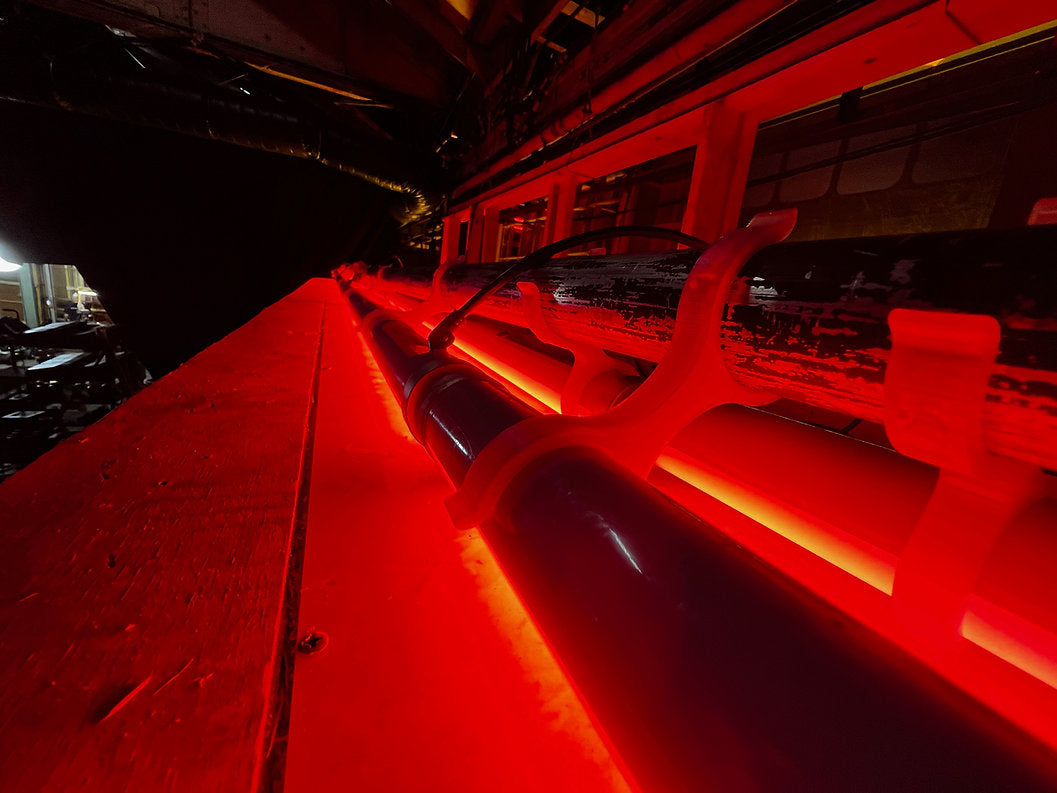

These clips are designed for rigging Astera tubes (or similar 1.7” (43mm) diameter fixture) to pipe and truss while eliminating the traditional metal and weight.
Flanged tube/truss entry geometry makes it easier to snap the clips into place. We've included zip tie channels for safety options and raised markings on the pipe side in order to assist during low-light conditions.
PETG-CF (Carbon Fiber) option available for improved strength and higher temperature rating.
Specifications:
3D printed withPETG.
A quality plastic material with great strength and flexibility. Rated up to 170°F (77°C).
Carbon Fiberoption: rated up to 266°F (130°C).
DIMENSIONS
1.25"Standard:4.54" x 1.83" x .6" (115.4x46.5x15.2mm)
1.25"Long : 5.31" x 1.83" x .6" (135x46.5x15.2mm)
1.50" Standard :4.62" x 2.23" x .6" (117.3x56.6x15.2mm)
1.50" Long : 5.45" x 2.23" x .6" (138.4x56.6x15.2mm)
