FTSLED - CERISE 2U PRO WIRED

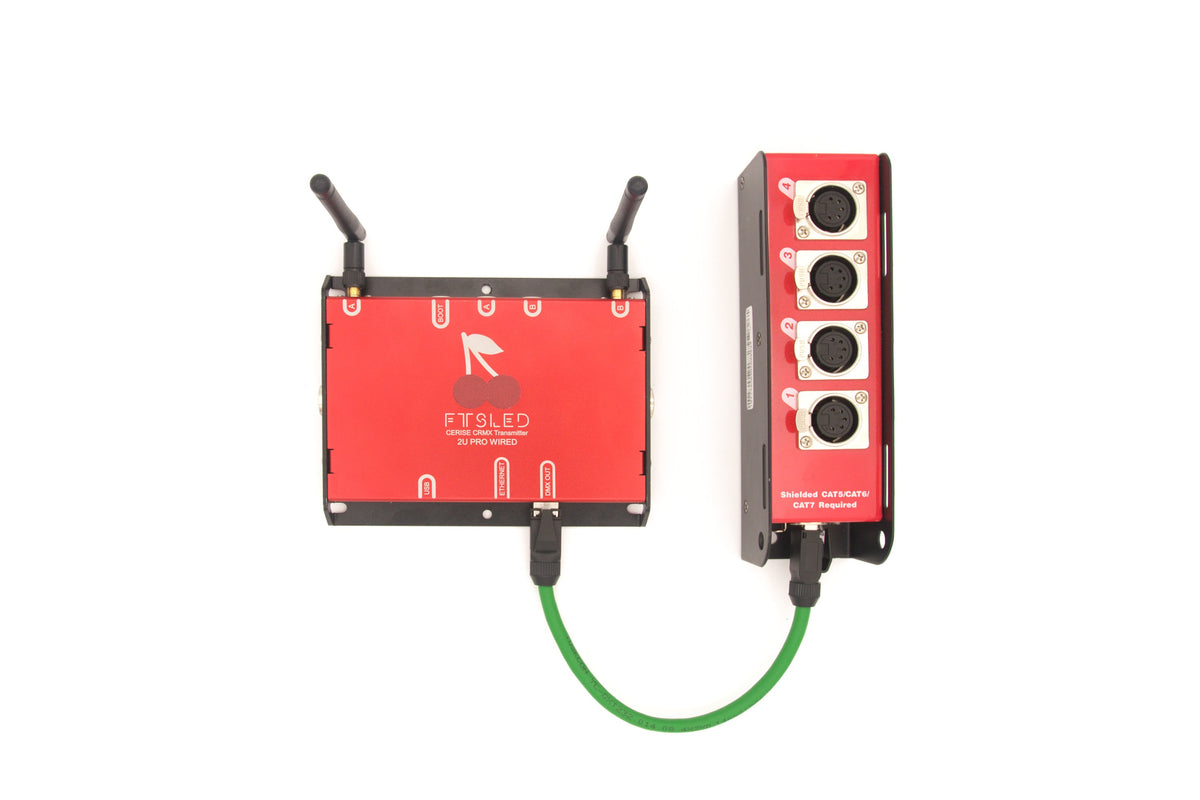

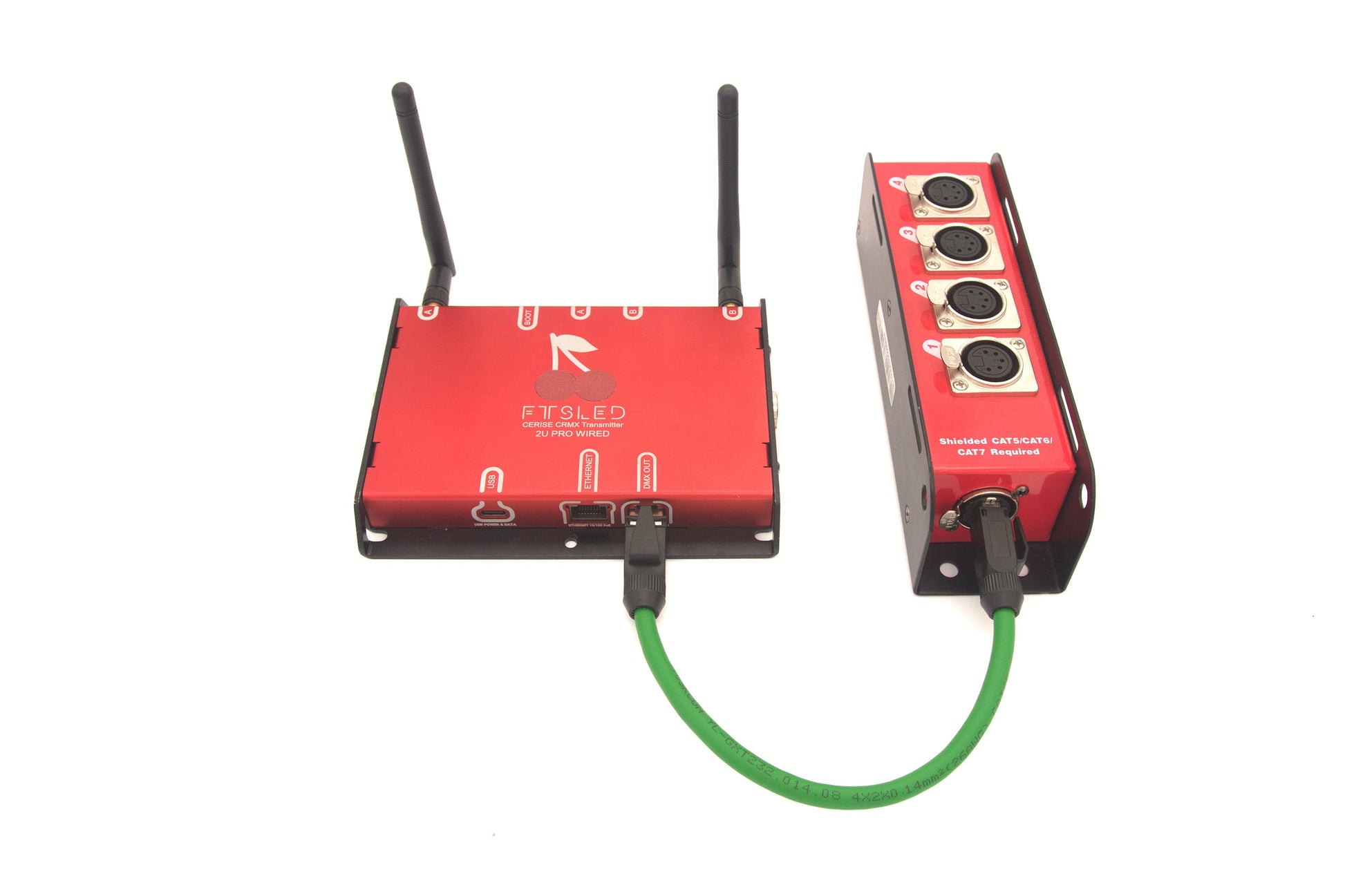

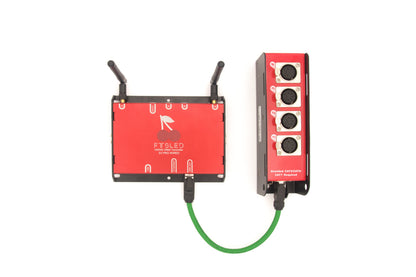

CERISE 2U PRO WIRED KIT INCLUDES:

1x TX Cerise Two Pro Wired

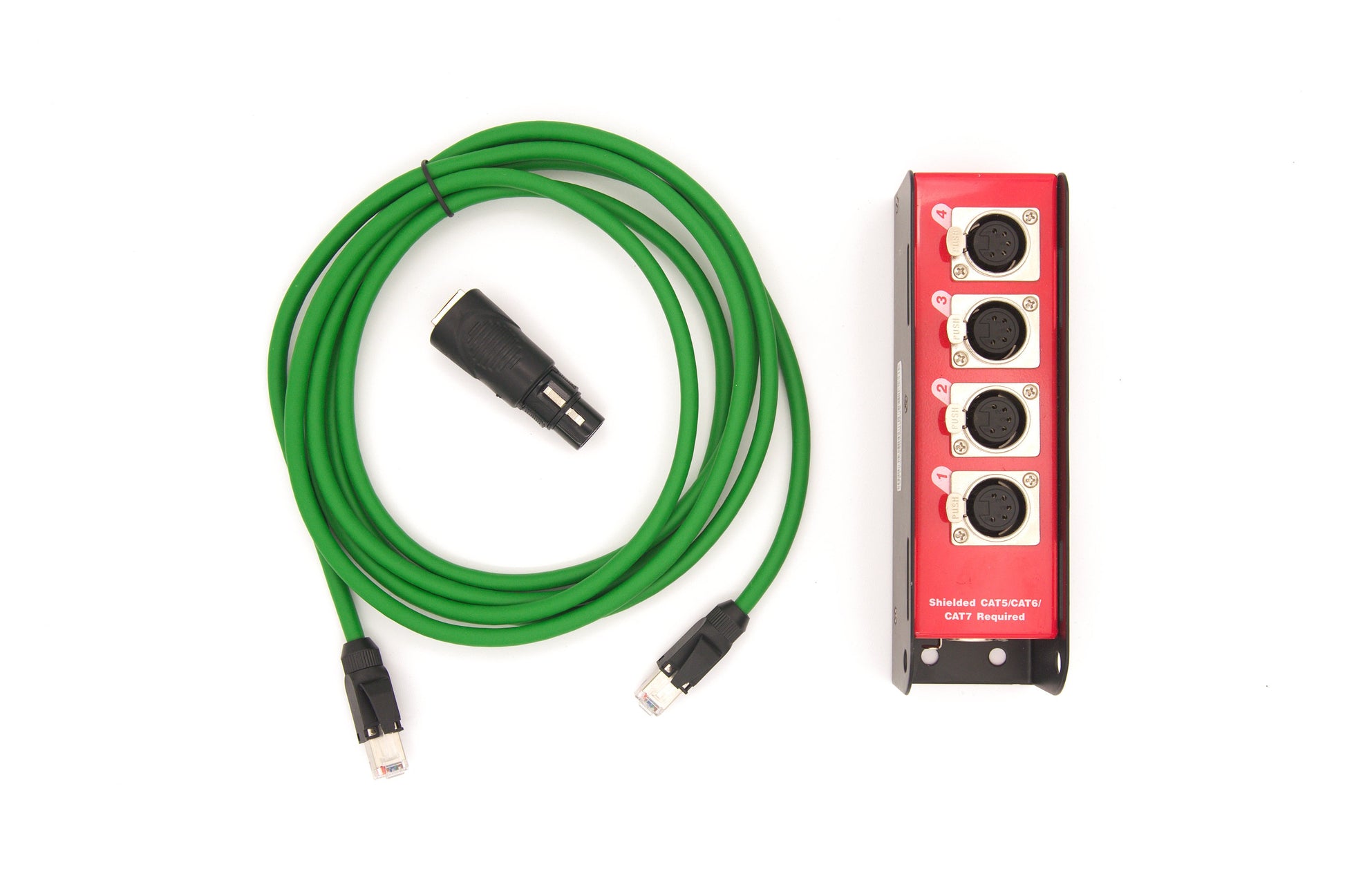

2x RP-SMA Antenna
1x RJ45 to 4x DMX 5-Pin Splitter
1x RJ45 to 1x DMX 5-Pin Adapter

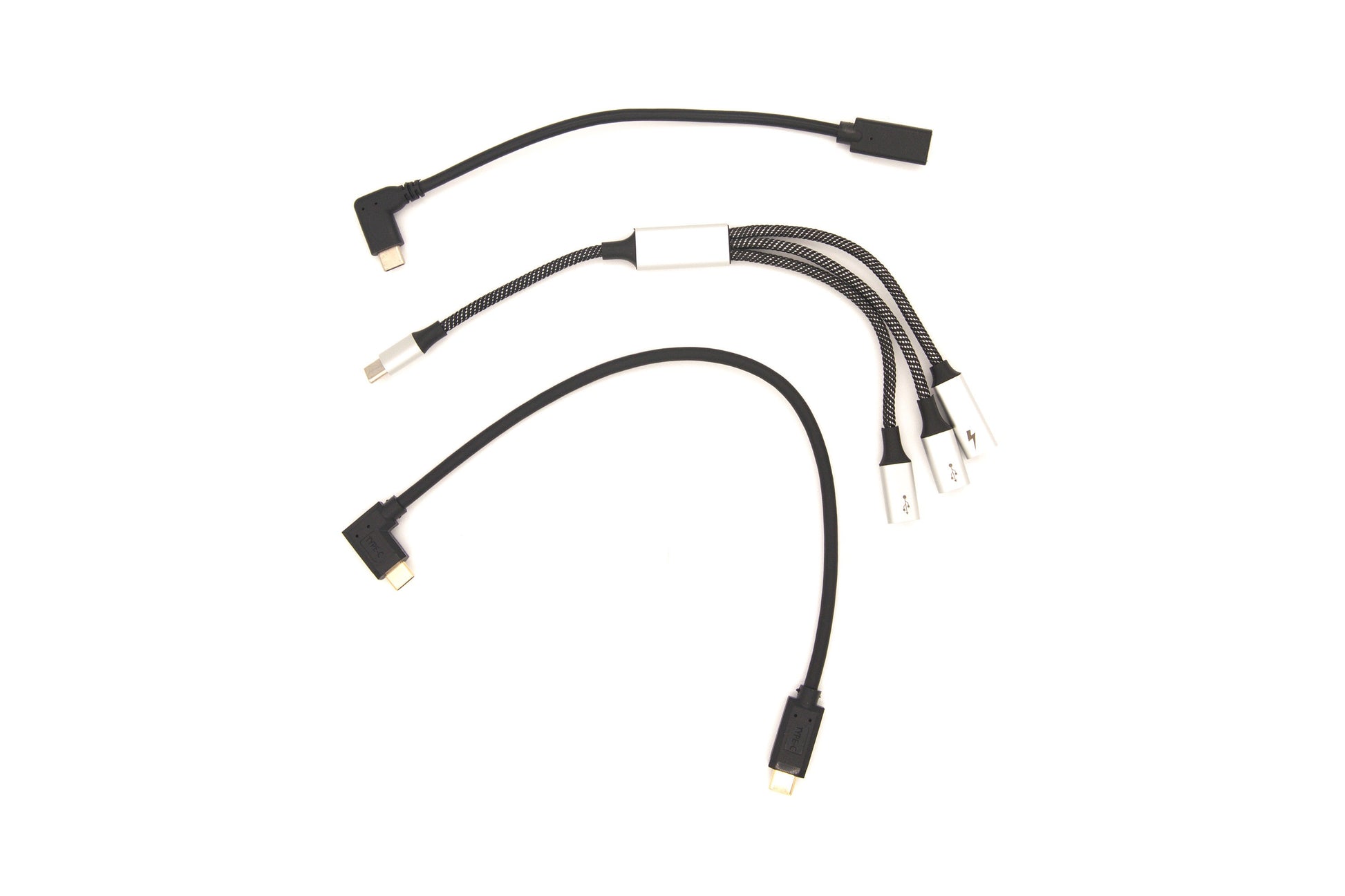

1x USB-C Splitter 1x
USB-C
Cable 1x RJ45 Cable

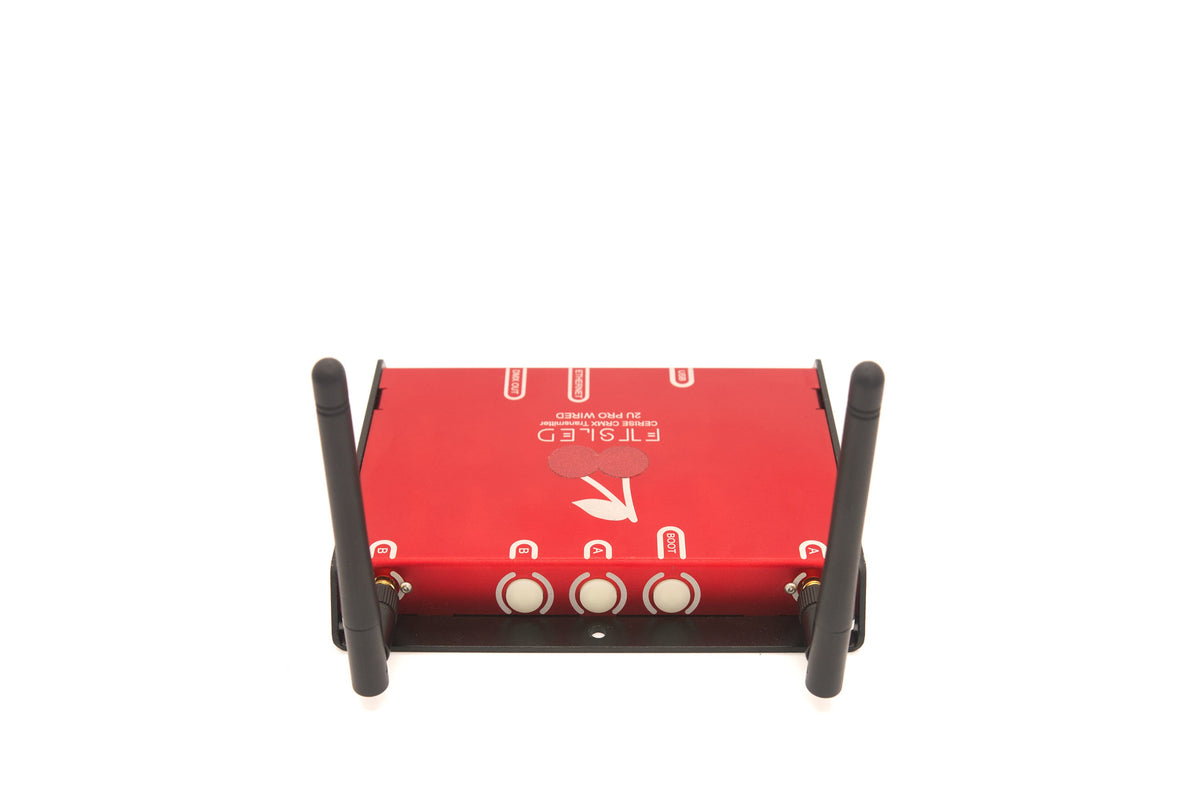

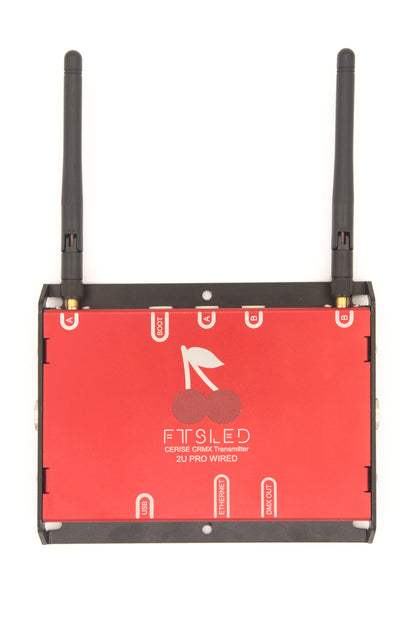

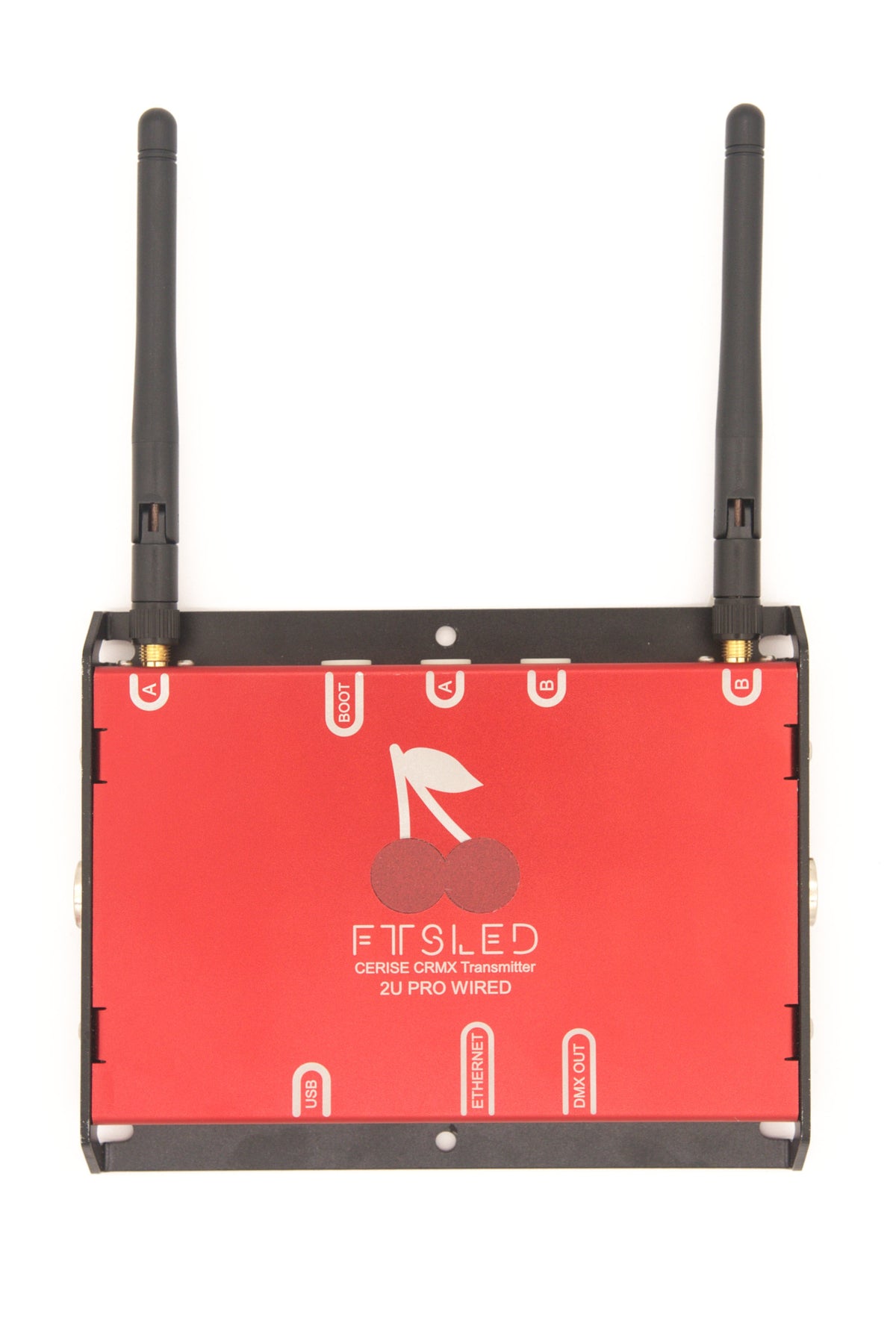

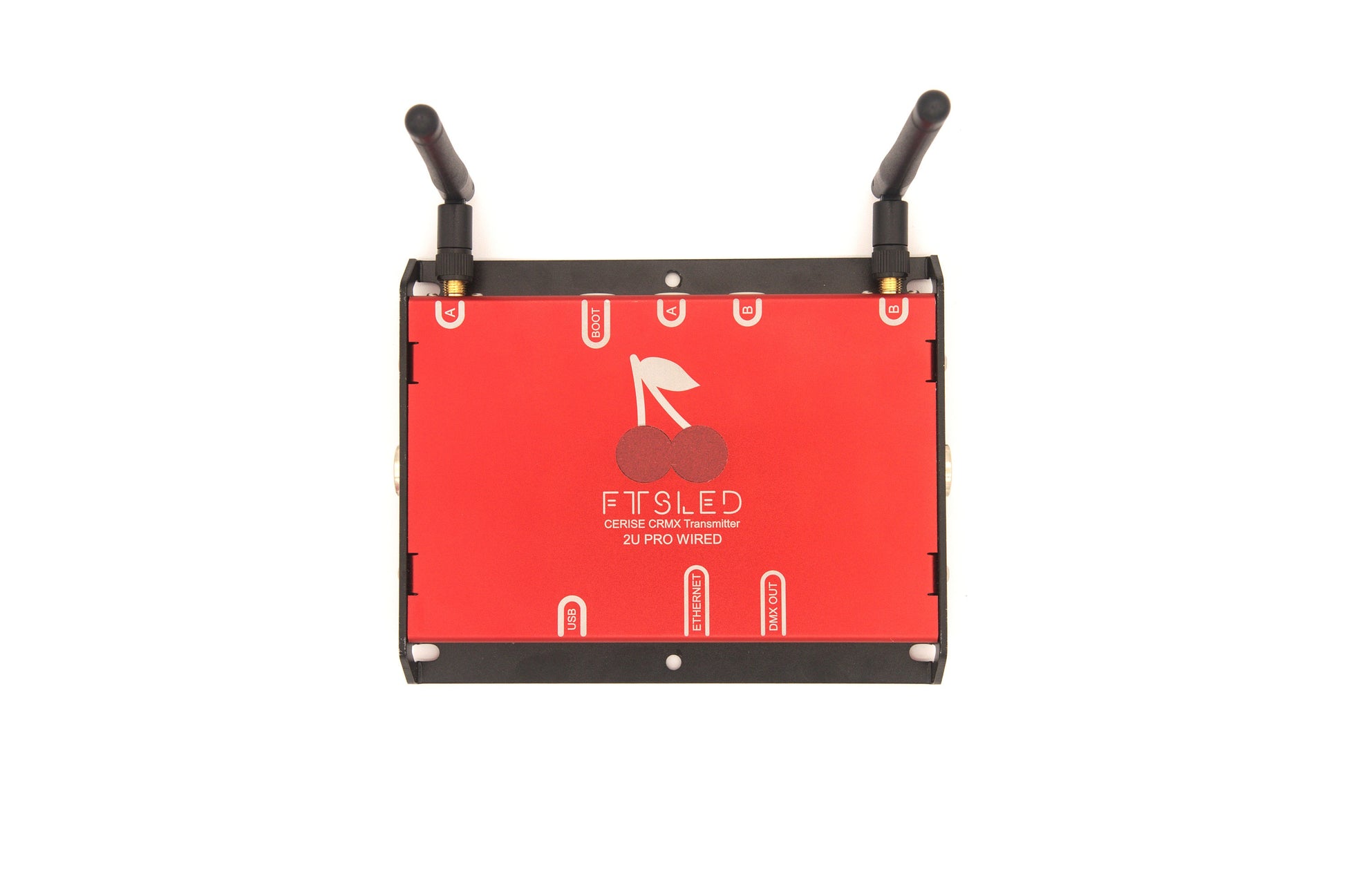

CERISE TWO Pro  WIRED  CRMX 2 Universe USB transmitter

CERISE is the best solution for your DMX projects. This state-of-the-art transmitter designed in France has unmatched transmission power thanks to its external antenna and offers optimal wireless performance for faster response time and zero latency. Cerise Two Pro Wired is capable of transmitting 2 CRMX universes and 4 wired DMX universes , simple and fast connectivity via a single USB cable makes Cerise One the ultimate Plug & Play solution.

No tedious configuration, Cerise is recognized as a network card by your tablet. For even more control, the embedded web interface is accessible from any device, it allows advanced configuration and DMX broadcasting thanks to an integrated console of 3072 channels.

Includes advanced features such as frequency analysis and Linking Key.

• Supported protocols CRMX, ArtNet, sACN
• One USB cable for data and power

• Zero latency and interference thanks to direct connection
• Compatible with all DMX control interfaces

Technical Specifications:

* Supported protocols
Input:
- sACN
- Art-Net 1-4
Output:
- CRMX
- Wired DMX

* RF specifications
- Frequency range: 2402-2480 MHz
- Radio module: TimoTwo
- 5 ms latency

* Connectivity
- USB type-C
- CRMX External RP-SMA antenna
- Ethernet
- DMX via RJ45 adapter included

* Power supply
- USB-C 5V
- PoE via RJ45 cable

* Physical
- IP20 aluminum housing
- M10 female thread for spigot
- Dimensions: 147 x 116 x 20 mm
- Weight: 280 g

* Environment
Reparability index: 9/10
Designed and assembled in France
