Fiilex Q8 Travel Kit

The Fiilex Q8 Travel is a 340W tunable LED Fresnel with best-in-class optical performance. Its precisely designed 8” Fresnel lens produces a smooth light field at all beam angles (12-60°).
The Q8 Travel includes three other key features that address the needs of many film and video productions. First, the tunable CCT and hue enable the Q8’s output to blend seamlessly with existing lighting. Second, the robust construction ensures that the Q8 can withstand rough transportation and rigging conditions. Third, the intuitive LCD display and manual control knobs allow filmmakers to make quick adjustments on set.
With 48V DC battery compatibility and a weight of only 16 pounds, the Fiilex Q8 Travel is a great LED lighting fixture for on-location use.

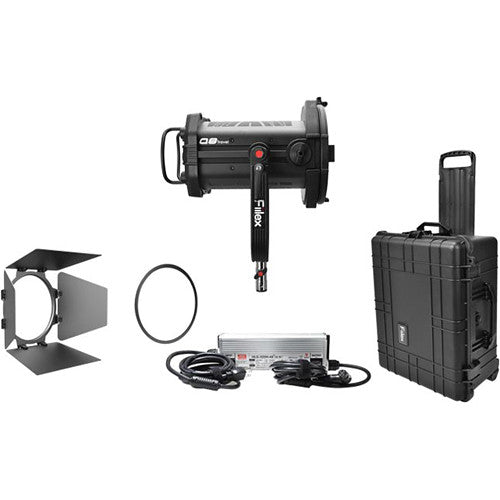

1 x Q8 Travel LED Fresnel
1 x Multi-Voltage Power Supply
1 x Barndoor Set
1 x Gel Holder
1 x H-Series Wheeled Travel case

340W power draw
Unmatched focus/flood range of 12-60°
Smooth dimming down to 0%
Flicker free at any frame rate
IP-24 Rating (water-resistant)
Tunable CCT (2800-6500K)
Hue control (±0.25 green/magenta)
High CRI at any color temperature, 97 typical.
Broadband full-spectrum LED source
Designed in USA. Assembled in USA/Taiwan

Fresnel Size 8”
Beam Angle 12°-60°
CCT Range 2800-6500K Continuous Tuning
Hue Control ±0.25 Green/Magenta
CRI 98 Typical.
Dimming 100% - 0%(Cut off @ 0.1%)
LED (One) 300W DiCon Dense Matrix LED
Input Power DC 48V-54V
Power Consumption 340W Max AC | 300W Max DC
Power Adapter AC Input: 100-240V AC, 50~60Hz | DC Output: 48V
DC Power Port XLR-3P
DMX Port Two XLR-5P Ports and Two RJ45 Ports
(3 Channels: Dimming, CCT, & Hue)
USB 5V Yes
Weight Fixture: 16.2 lbs / 7.35kg (Includes Yoke)
Power Adapter: 5.6 lbs/2.6kg
Size L 14.1" x W 12.3"x H 17.2"
L 357mm x W 312mm x H 438mm
Mount Type Baby Stud 5/8" Female (16mm) and
Junior Stud 1-1/8" Male (28mm)
IP Rating IP-24 (Water-Resistant)
Thermal Design Advanced Vapor Cooling System (Fan Cooled)
Operating Temperature 32-104ºF / 0-40º C
