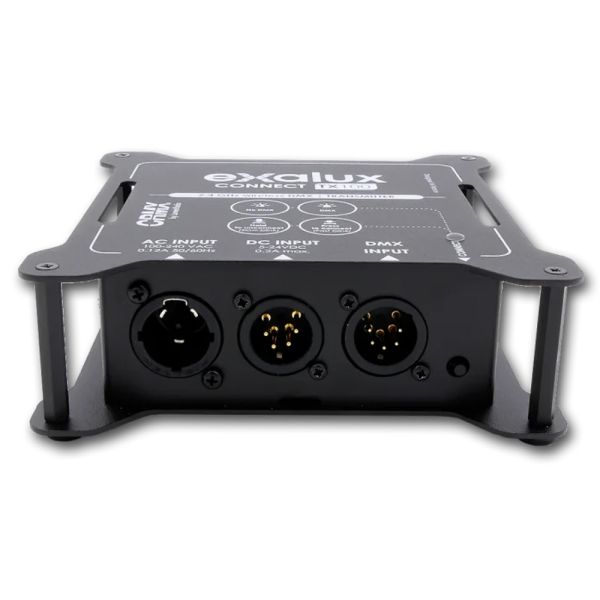

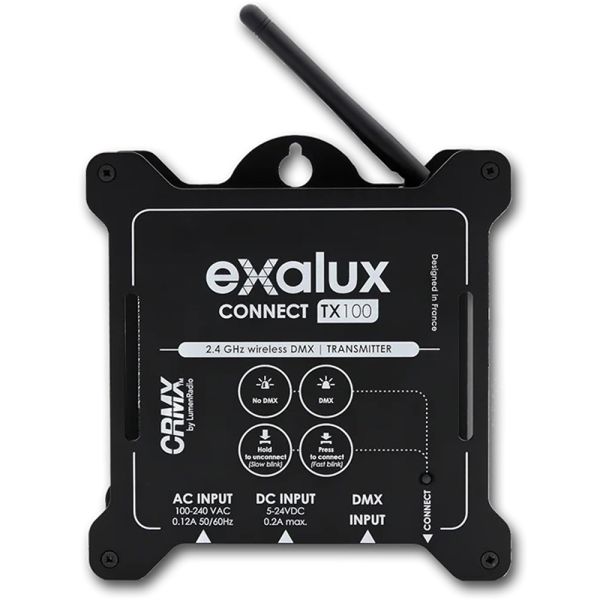

Exalux TX100 Transmitter (21 Available)

The Exalux Connect TX100 is a 512-Channel 2.4GHz Wireless DMX Transmitter with 5-Pin XLR.

Features

• Wireless DMX transmitter using LumenRadio CRMX technology for latency-free transmission
• Supports 1 DMX universe with DMX512-A protocol
• AC (100-240VAC) or DC (5-26VDC) powered for flexible operation
• Removable RF module for easy upgrades and repairs
• External 2.4GHz, 2.0dBi SMA antenna with a range of up to 400 meters
• 5-pin male XLR connector for DMX input, 4-pin male XLR connector for DC input
• Designed for both studio and field use, with power options for any setting
• Compact and rugged aluminum housing with matte black finish
• Easy to adapt to various needs with a removable antenna
• Supports wide supply range of 5VDC to 26VDC for powering from different sources
• IP30 rated, ensuring protection from dust and debris
• Environmentally friendly, fully self-repairable design to extend product life

Specifications

General

• Type: Wireless DMX Transmitter
• DMX Protocol: DMX512-A (ANSI E1.11)
• DC Power Supply Range: 5 > 26VDC
• AC Power Supply Range: 100 > 240VAC
• Housing: Aluminium, matte black finish

Radio

• RF Protocol: LumenRadio CRMX
• Antenna: External, 2.4GHz, 2.0dBi SMA (M)
• Frequency: 2.402 - 2.480 GHz
• Range: Up to 400m

I/O Connectors

• DC Power Supply: XLR 4 Pins Male
• AC Power Supply: Neutrik PowerCon True1
• DMX: Neutrik XLR 5 Pins Male
• Antenna: SMA(F)

Dimensions and Weight

• Dimensions: 5.55 x 5.67 x 1.85 inches
• Weight: 0.79 lbs
• IP Rating: IP30
