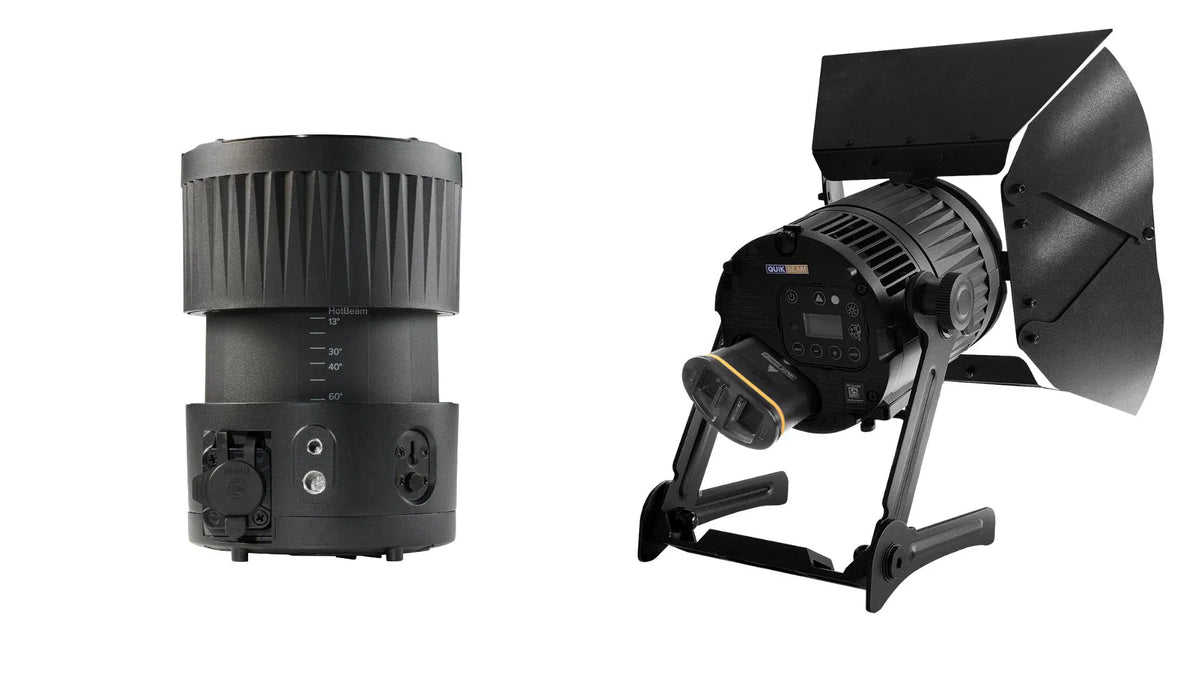

Astera Individual QuikBeam w/ Battery
**Individual fixture with Battery / Barndoors sold separately
QuikBeam (with battery): Zoomable, small LED spotlight with swappable battery.
Designed to blend in. Engineered to stand out. As a compact spotlight, QuikBeam delivers the power of a 200W Tungsten equivalent, with a 13º–60º Fresnel based zoom, swappable QuikBrick batteries, and built-in PoE.
Powered by the Titan LED Engine, it provides rich, accurate color rendering. Lightweight, versatile, and future-ready, it works perfectly for events of any size, indoors or outdoors, and for film and broadcast sets alike.
|
LED Engine |
Titan LED Engine |
|
|---|---|---|
|
Colors |
RGBMintAmber |
|
|
LED Power Draw |
20 W |
|
|
Luminous Flux 2 700 K |
1 124 Lumens |
|
|
Luminous Flux 3 200 K |
1 190 Lumens |
|
|
Luminous Flux 4 000 K |
1 239 Lumens |
|
|
Luminous Flux 5 500 K |
1 285 Lumens |
|
|
Luminous Flux 6 500 K |
1 224 Lumens |
|
|
Candela 2 700 K |
18 545 cd |
|
|
Candela 3 200 K |
19 575 cd |
|
|
Candela 4 000 K |
20 312 cd |
|
|
Candela 5 500 K |
20 663 cd |
|
|
Candela 6 500 K |
20 564 cd |
|
|
Light Output 2 700 K @ 3 m |
2 059 Lux |
|
|
Light Output 3 200 K @ 3 m |
2 174 Lux |
|
|
Light Output 4 000 K @ 3 m |
2 257 Lux |
|
|
Light Output 5 500 K @ 3 m |
2 294 Lux |
|
|
Light Output 6 500 K @ 3 m |
2 285 Lux |
|
|
CRI (Ra) / TLCI 3200 – 6500 K |
≥96 |
|
|
OutputGain |
Yes |
|
|
Beam Angle |
12.6° – 58.5° |
|
|
Field Angle |
16.9° – 78.2° |
|
|
Strobe |
0 – 25 Hertz |
|
|
Battery Runtime |
up to 20 hours |
N/A |
|
Battery Runtime (max. Brightness) |
1 h 20 m |
N/A |
|
Charging Time (nominal) |
2 h 40 m |
N/A |
|
DC Input |
PoE++ |
|
|
DC Connector |
RJ45 |
|
|
Ethernet Port Speed |
100 Mbit/s |
|
|
Power Consumption (max.) |
40 W |
|
|
Cable length |
up to 100 m |
|
|
ArtNet/sACN |
via Ethernet |
|
|
CRMX Receiver |
Built-in |
|
|
BluetoothBridge BTB |
Built-in |
|
|
Wireless Protocols |
CRMX, UHF, Bluetooth, WiFi |
|
|
Wireless Range |
CRMX / UHF up to 300 m / 330 yds |
|
|
RDM Support |
via CRMX |
|
|
Infrared Control |
Yes |
|
|
IP Rating unwired |
IP65 |
|
|
IP Rating wired |
IP65 |
|
|
Ambient Operating Temperature |
0 – 40 °C / 32 – 104 °F |
|
|
Weight |
1617 g / 3.56 lbs |
1438 g / 3.17 lbs |
|
Dimensions (H x Ø) without yoke |
136 mm x Ø 120 mm / |
|
|
Dimensions (L x W x D) with yoke |
241 mm x 174 mm x 125 mm / |
|
|
Mounting Options |
1/4" – 20 UNC, 3/8" – 16 UNC thread, Yoke (with AirlineTrack, 3/8" – 16 UNC thread, 1/2" hole) |
|
All specifications provided are typical values and may be subject to change without prior notice.
