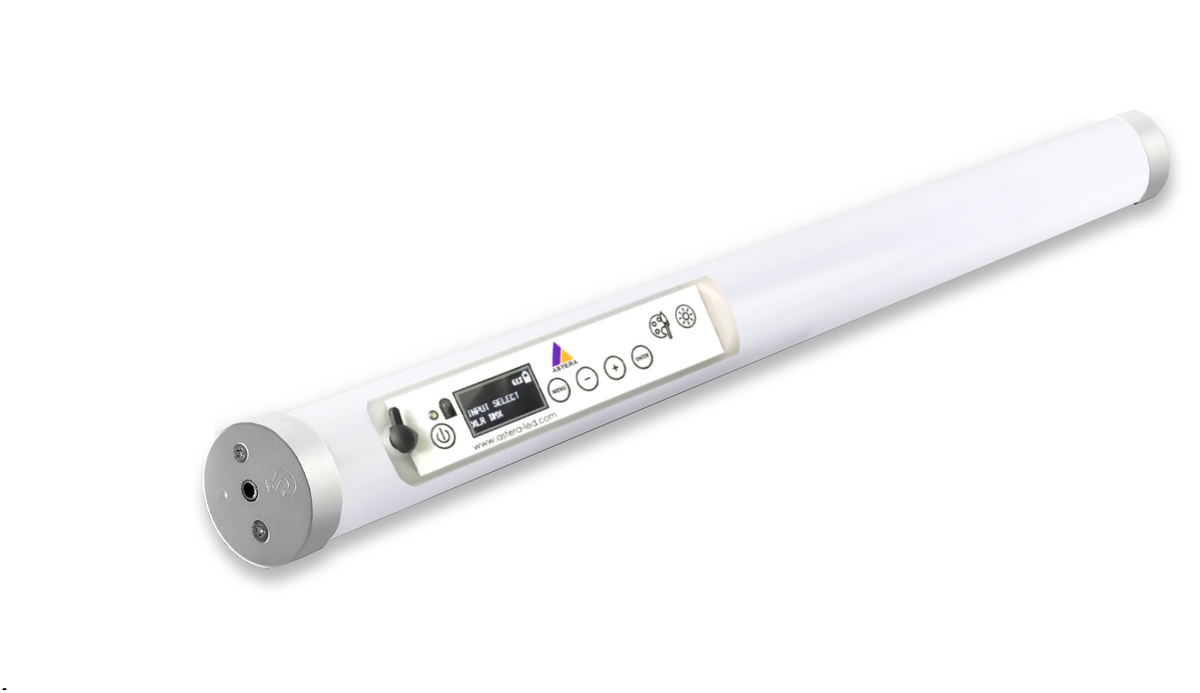

Astera Helios Tube

Helios Tube

Introducting Astera's latest product for its LED Pixel tube line. The Helios has all the features of the popular Titan Tube while offering a smaller format. This allows it to be mounted in areas where a Titan Tube wouldn’t fit and also increases portability. Helios Tube has 8 pixels and half the brightness of Titan Tube and just over half its length. Colors and brightness are perfectly matched to those of Titan Tube.

1x stand
2x holders
2x eyebolts

  •  8 individually controllable pixels
  •  Tunable CCT (1750K – 20,000K)
  •  Ultra High Color Rendering. TLCI ≥96 , CRI ≥96, CRI Re ≥90 from 3200k-6500k
  •  Boost Mode: Ultra bright white light on 2 hour mode or while connected to AC

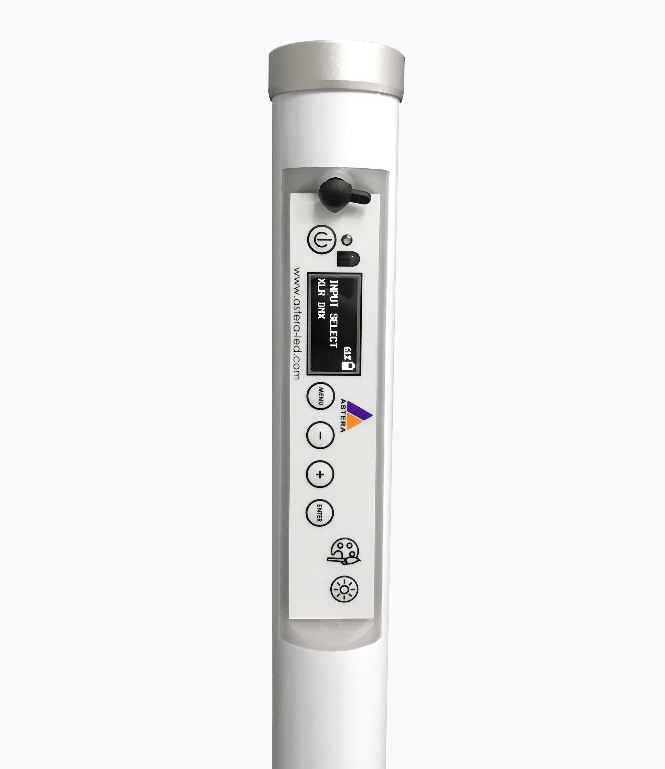

  •  Backside Display for easy color, saturation, hue, and intensity control
  •  Wired data connection + wireless capabilities with transmitter. DMX , Art-net, sAcn via the powerbox
  •  IP65 rating

Colors: Red, Green, Blue, Mint, Amber
Total LED power: 36W
Maximum power draw: 24W
TLCI: 96
CRI: 96
Luminous flux: 1450Lm
Emittance @1m: 393Lx
Strobe: 0-25Hz
Beam Angle: 120°
Field Angle: 180°
Pixels: 8

Battery: LG Chem Lithium-ion
Battery Lifetime: 70% after 300 cycles
Battery Runtime: Up to 20 hours
LED Lifetime: 50.000 Hours
Charging time (nominal): 3 Hours
Input Voltage : 24V 1.25A

Backside Display with HSI control
Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
Range: 300m | 330 Yards
DMX: Wired + Wireless (CRMX & W-DMX)

Housing: Polycarbonate, metal endcap
IP Rating: IP65
Relative humidity: 0-100%
Operating Temperature: 0-40 C | 32-104 F
Weight: 0.765kg | 1.68Lbs
Dimensions: 42 x 550mm | 1.6 x H22.7

NOTE: Charger ( FP1-CHR ) Not included.
NOTE2: astera transmitter ART7 (not included) is required to control the tubes via the Astera app.
NOTE3: ARC1 remote(not included) can also be used to control the tubes using preset colors and programs on the remote.
