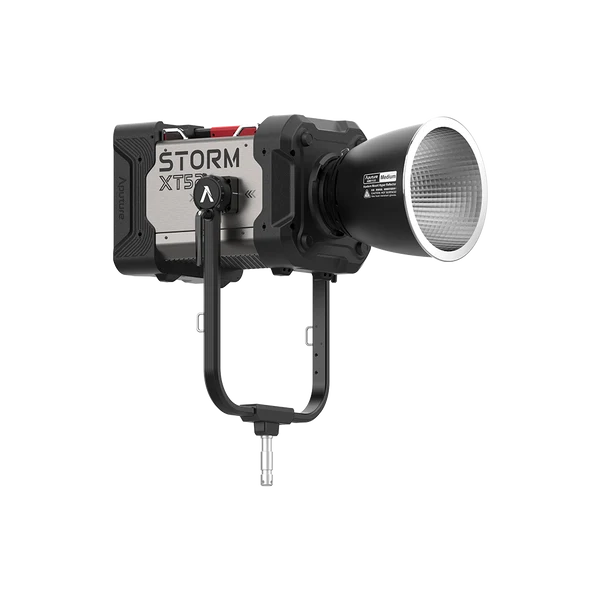

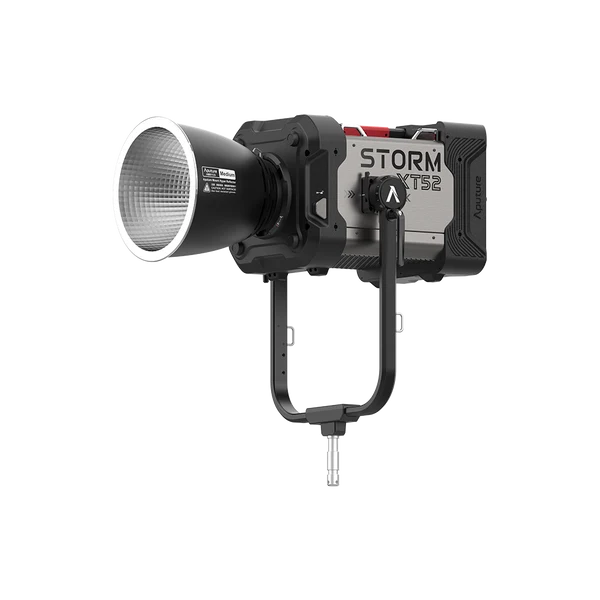

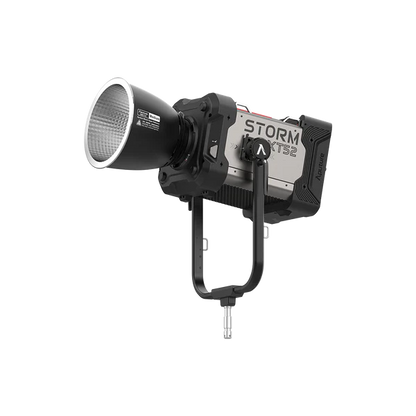

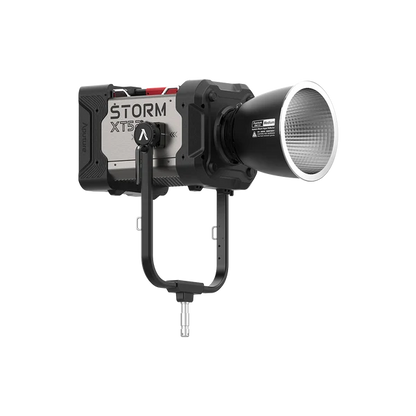

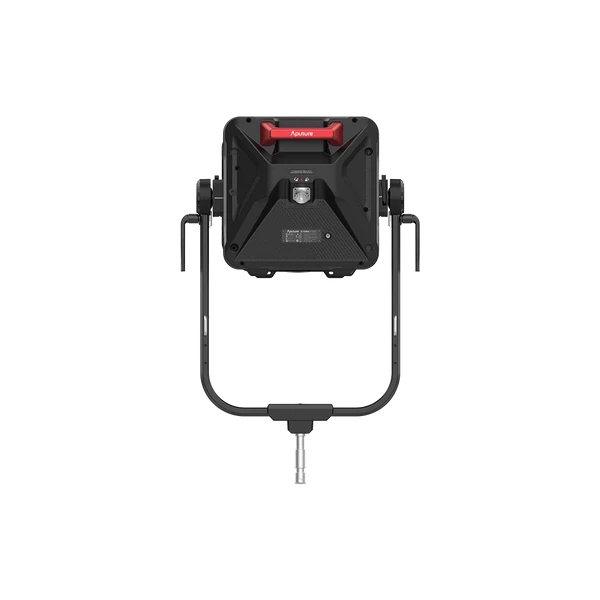

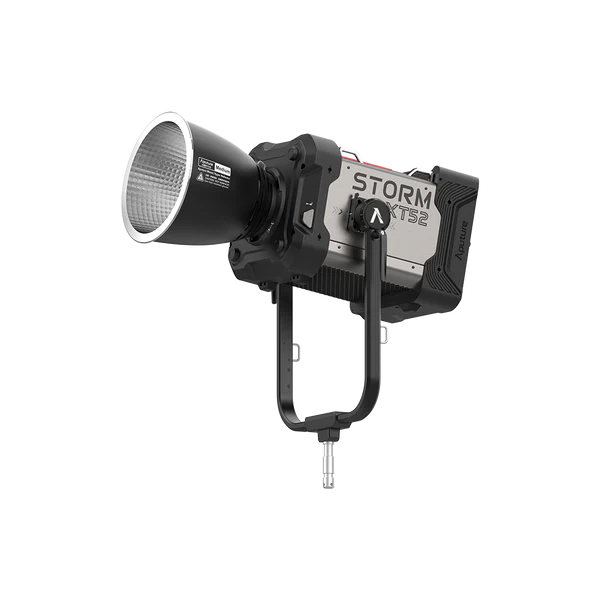

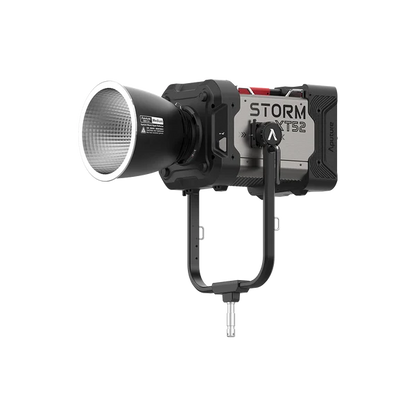

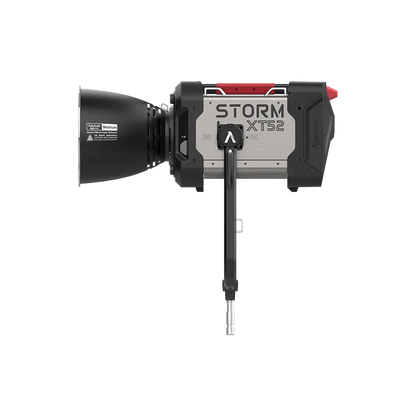

Aputure STORM XT52
5,200W tunable white high intensity point source lamp
Overpower daylight with the most powerful point source LED fixture in the industry, with both tunable white and color capabilities.
The Aputure STORM XT52 utilizes the BLAIR (Blue/Lime/Amber/Indigo/Red) light engine, delivering the highest quality white light and greatest +/- green adjustability of any LED technology. The BLAIR light engine's indigo emitters enhance fluorescing materials like natural daylight and tungsten sources.
The STORM XT52's output is also the brightest of any LED point source fixture in the industry, 41,900 Lux at 5M with a 35° reflector. This exceeds the brightness of a 6,000W HMI fixture.
The revolutionary BLAIR light engine can also output saturated colors across more than 70% of Rec.2020 color space using Limited HSIC+ and x,y control modes. Achieve deep crimson sunsets, rich sodium vapor ambers, and subtle color effects without gels.
STORM XT52 is more than twice as powerful as any other point source color light.

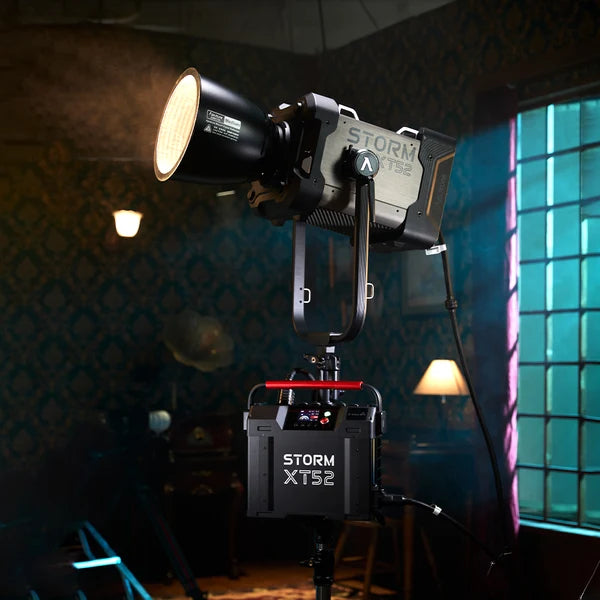

The STORM XT52 lamp head weighs 27.80kg (61.29lbs), and can be lifted by one person and operated on a standard crank stand. The portable XT52 control box is the size of a briefcase and weighs just 13.40kg (29.54lbs).
Extend the 7.5M STORM XT52 head cable up to 45M. Place the lamp head in a cherry picker and leave the control box on the ground to save on weight and keep physical controls nearby. Power the STORM XT52 at full brightness on standard 6,500W generators.
BLAIR: The Best Tunable White Light
The Aputure STORM XT52's BLAIR (Blue/Lime/Amber/Indigo/Red) light engine delivers the highest quality white light with the greatest CCT range and +/- green adjustability of any high output LED fixture. The BLAIR chipset's indigo emitters enhance fluorescing materials like natural daylight and tungsten sources.
The STORM XT52's output is also the brightest of any LED point source fixture in the industry, 41,900 Lux at 5M with a 35° reflector. This exceeds the brightness of a 6,000W HMI fixture.
Color Tuning Control With HSIC+ and x,y
The revolutionary BLAIR light engine is also able to output saturated colors across more than 70% of Rec.2020 color gamut using Limited HSIC+ and x,y control modes. Achieve deep crimson sunsets, rich sodium vapor ambers, and subtle color effects without gels.
STORM XT52 is more than twice as powerful as any other point source color light.
Smallest Size and Lowest Weight in Class
The STORM XT52 lamp head weighs 27.80kg (61.29lbs), and can be lifted by one person and operated on a standard crank stand. The portable XT52 Control Box is the size of a briefcase and weighs just 13.40kg (29.54lbs).

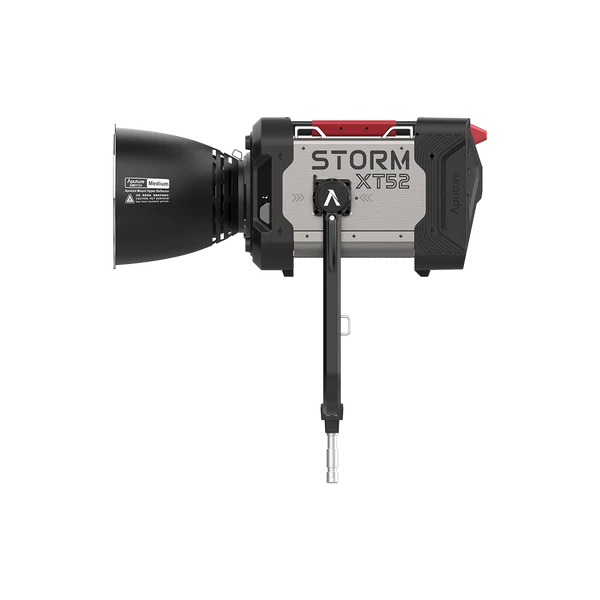

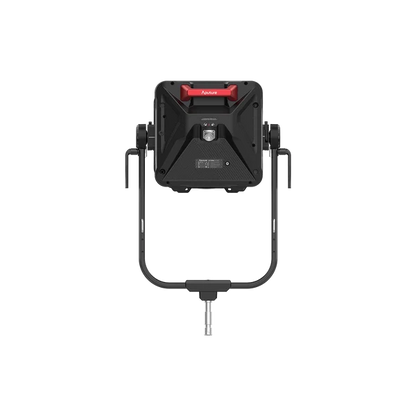

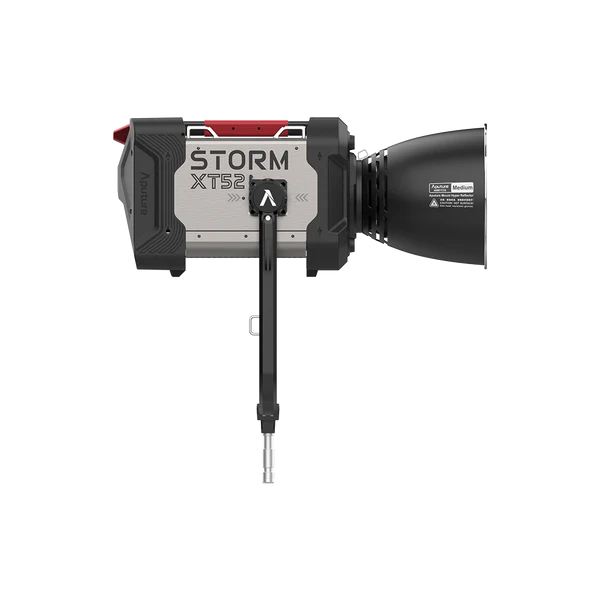

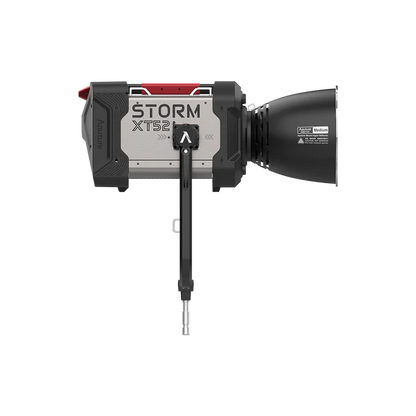

XT52 Lamphead:
- Weight: 27.80kg (61.29lbs)
- Dimensions: 550*353*362mm (21.7*13.9*14.3in)

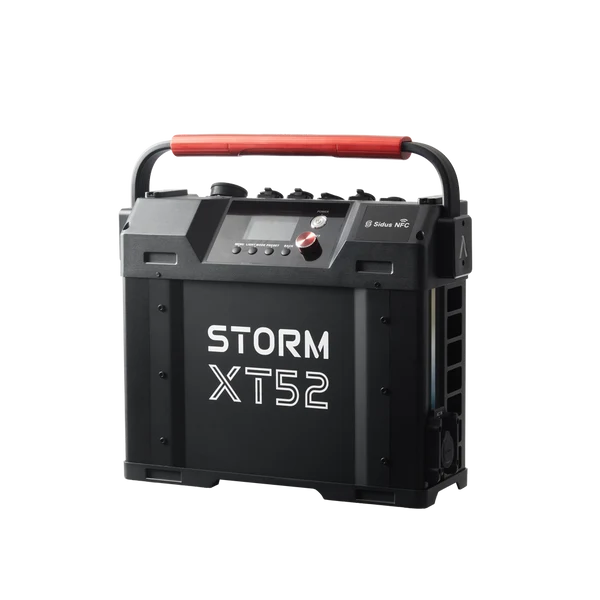

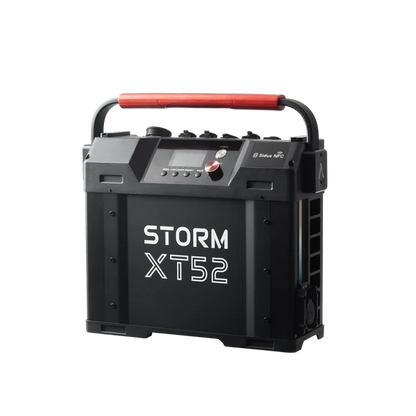

XT52 Control Box:
- Weight: 13.40kg (29.54lbs)
- Dimensions: 411*159.5*388mm (16.2*6.3*15.2in)
Extend Your Reach
Extend the 7.5m STORM XT52 head cable up to 45m. Place the lamp head in a cherry picker and leave the control box on the ground to save on weight and keep physical controls nearby. Power the STORM XT52 at full brightness on standard 6,500W generators.
Built Rugged and Easy to Service
The STORM XT52 is IP65 weather protected across the entire system, from control box to cables to lamphead and even modifiers.
Ruggedized construction makes the light built for the most challenging environments, and service is easy and fast with the modular internal design.
Runs Full Power Off of Popular Generators
The STORM XT52 is easy to use in any location. The fixture draws 5,200W at full power, meaning it can run on popular 6,500W generators.
If the head cables are extended to 45m, the power draw can rise to 6,000W, and there is a menu control to limit maximum power so that a generator or other power source will not be overtaxed.
High Power Light for High-Speed Photography
The STORM XT52 offers flicker free output at 20% brightness or more at any recording frame rate. With the high output available from the light and the quality and versatility of the BLAIR light engine, the XT52 is ideal for all high frame rate work, from major action stunts to food product photography.
STORM XT52 Photometrics
| CCT | Dis. | No Reflector | 50° Reflector | 35° Reflector | 25° Reflector | 20° Reflector |
|---|---|---|---|---|---|---|
| 2,500K | 3m | 15,950 lux 1,481 fc | 47,800 lux 4,440 fc | 90,900 lux 8,445 fc | 151,200 lux 14,044 fc | - |
| 2,500K | 5m | 5,990 lux 556 fc | 17,500 lux 1,625 fc | 31,300 lux 2,908 fc | 52,500 lux 4,692 fc | 93,200 lux 8,658 fc |
| 3,200K | 3m | 18,870 lux 1,753 fc | 58,380 lux 5,424 fc | 103,500 lux 9,616 fc | 189,500 lux 17,605 fc | - |
| 3,200K | 5m | 7,180 lux 667 fc | 24,500 lux 2,276 fc | 35,400 lux 3,289 fc | 66,000 lux 6,132 fc | 119,600 lux 11,111 fc |
| 4,300K | 3m | 22,830 lux 2,121 fc | 151,200 lux 14,044 fc | 131,300 lux 12,200 fc | 218,800 lux 20,320 fc | - |
| 4,300K | 5m | 8,620 lux 801 fc | 52,500 lux 4,692 fc | 45,300 lux 4,209 fc | 75,900 lux 7,409 fc | 134,500 lux 12,490 fc |
| 5,600K | 3m | 22,080 lux 2,051 fc | 68,400 lux 6,355 fc | 124,400 lux 11,557 fc | 222,000 lux 20,625 fc | - |
| 5,600K | 5m | 8,420 lux 782 fc | 24,480 lux 2,274 fc | 41,900 lux 3,893 fc | 77,500 lux 7,200 fc | 136,500 lux 12,681 fc |
| 10,000K | 3m | 17,140 lux 1,592 fc | 51,900 lux 4,822 fc | 98,600 lux 9,162 fc | 163,000 lux 15,140 fc | - |
| 10,000K | 5m | 6,420 lux 596 fc | 18,970 lux 1,762 fc | 33,900 lux 3,150 fc | 56,800 lux 5,277 fc | 100,600 lux 9,340 fc |
STORM XT52 Photometrics Cont.
| CCT | Dis. | XT52 w/ CF16 @ 18º | XT52 w/ @ 50º |
|---|---|---|---|
| 2,500K | 3m | 127,100 lux 11,804 fc | 23,280 lux 2,162 fc |
| 2,500K | 5m | 45,800 lux 4,254 fc | 8,380 lux 778 fc |
| 3,200K | 3m | 151,000 lux 14,025 fc | 26,760 lux 2,485 fc |
| 3,200K | 5m | 56,000 lux 5,202 fc | 26,760 lux 2,485 fc |
| 4,300K | 3m | 184,500 lux 17,135 fc | 33,900 lux 3,148 fc |
| 4,300K | 5m | 66,300 lux 6,157 fc | 12,230 lux 1,136 fc |
| 5,600K | 3m | 177,500 lux 16,484 fc | 31,700 lux 2,944 fc |
| 5,600K | 5m | 65,900 lux 6,120 fc | 12,170 lux 1,130 fc |
| 6,500K | 3m | 175,500 lux 16,298 fc | 32,400 lux 3,009 fc |
| 6,500K | 5m | 63,000 lux 5,850 fc | 11,680 lux 1,085 fc |
| 10,000K | 3m | 130,300 lux 12,100 fc | 24,150 lux 2,243 fc |
| 10,000K | 5m | 46,700 lux 4,337 fc | 8,690 lux 807 fc |

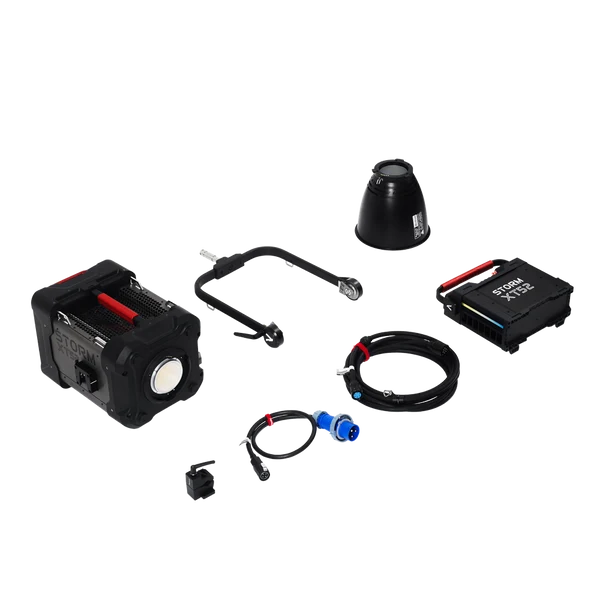

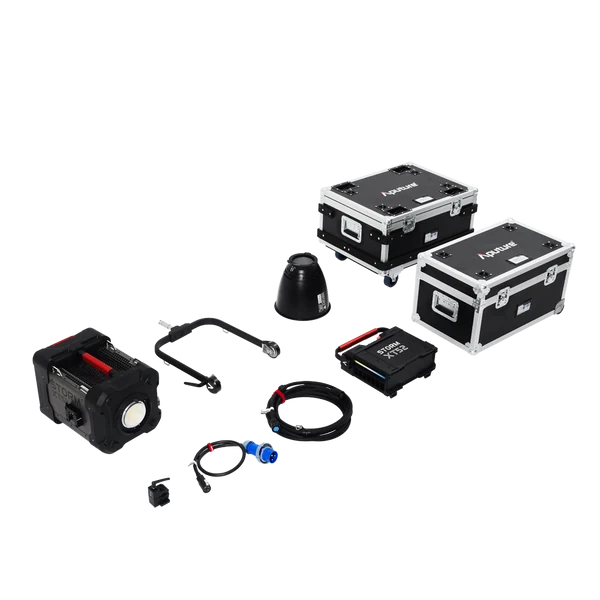

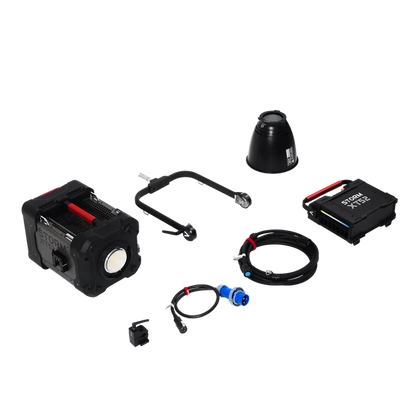

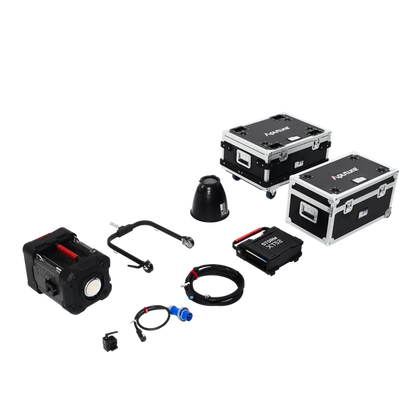

What's in the Box?
- 1x STORM XT52 Lamp Head
- 1x STORM XT52 Removable Yoke
- 1x STORM XT52 Aputure Mount Protection Cover
- 1x STORM XT52 Control Box
- 1x Aputure Mount 35° Medium Reflector
- 1x AC Power Cable (1m)
- 1x STORM XT52 Head Cable (7.5m)
- 1x Lightning Clamp
