Aputure STORM 1200x Cine Kit

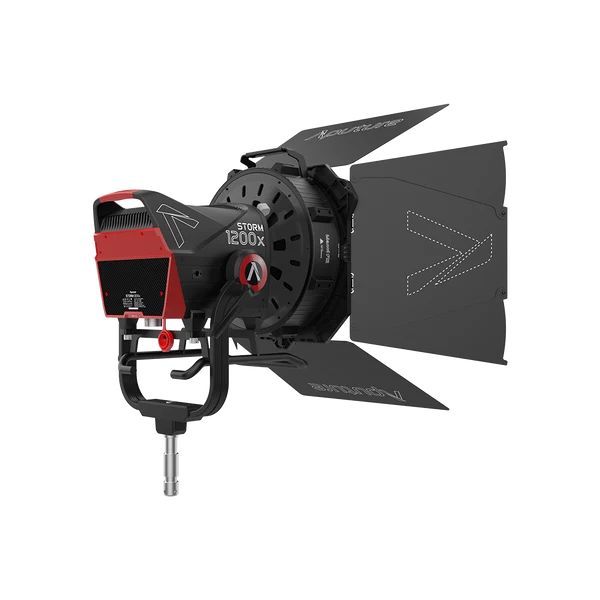

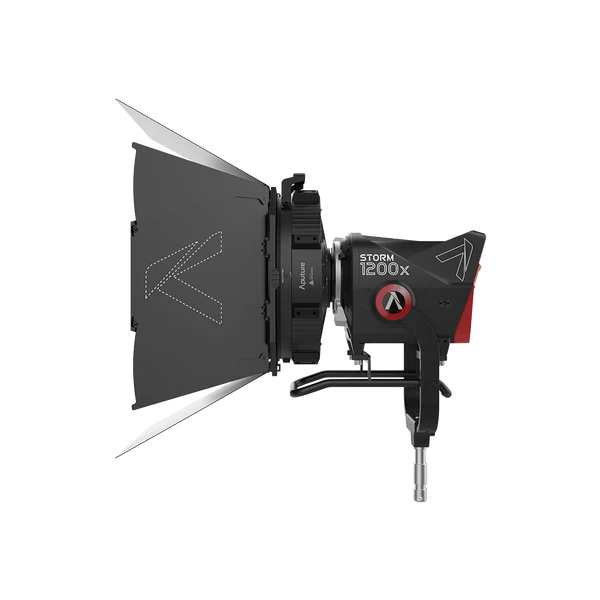

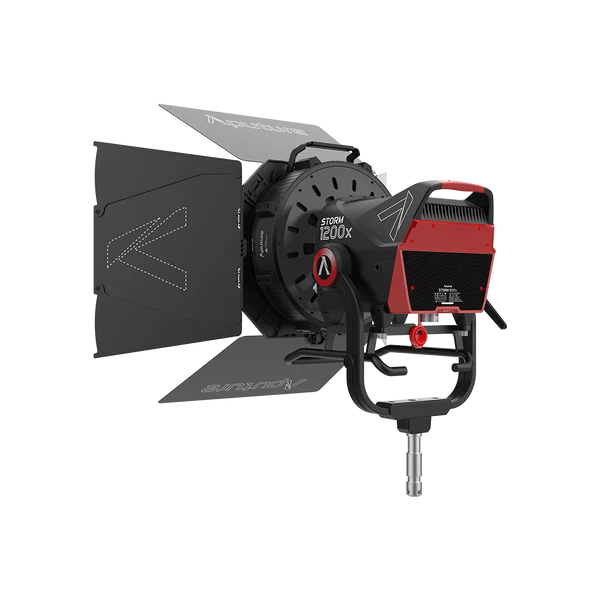

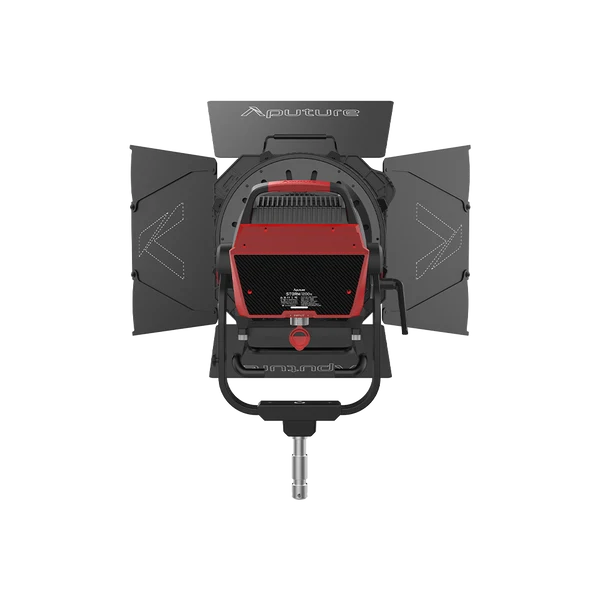

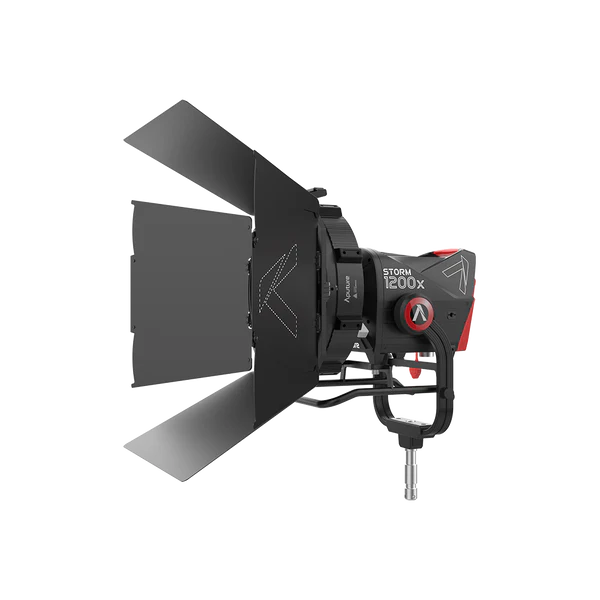

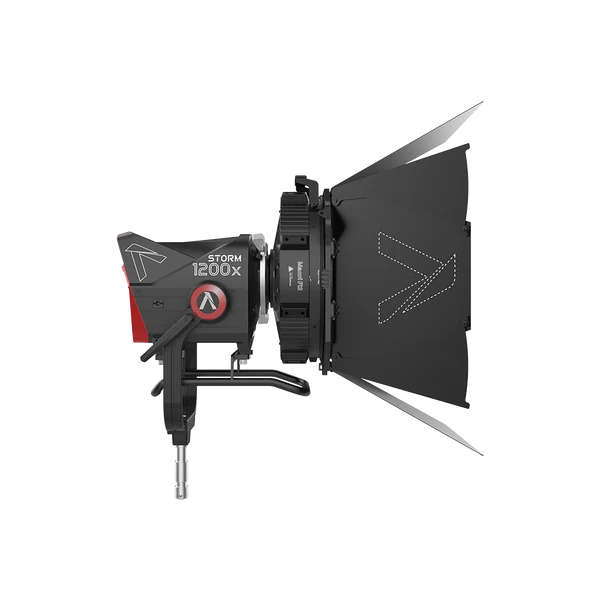

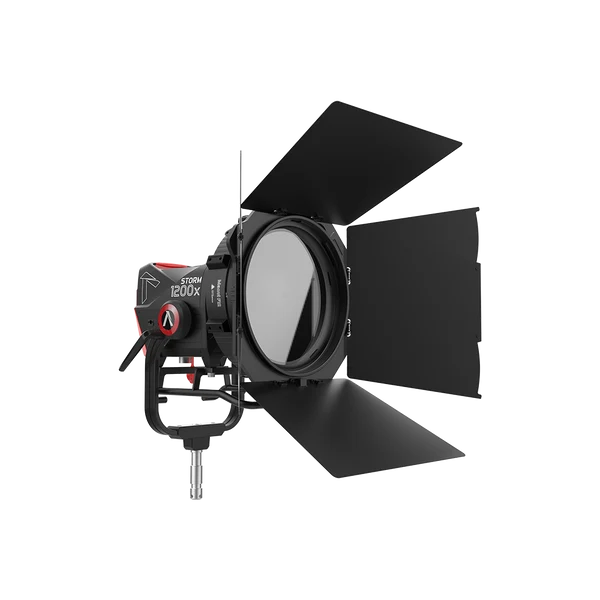

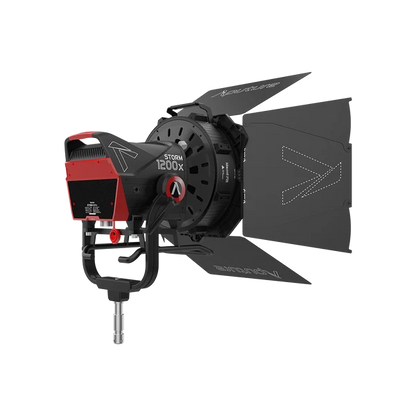

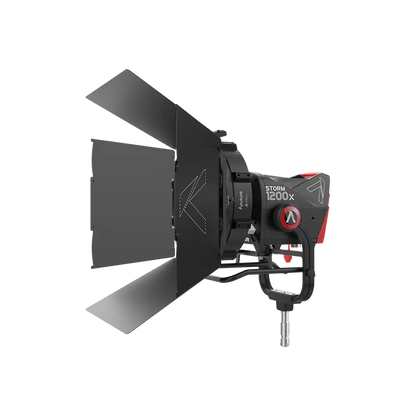

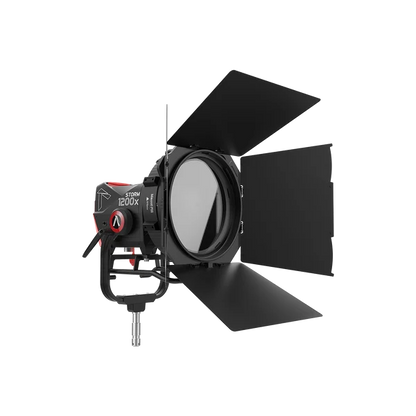

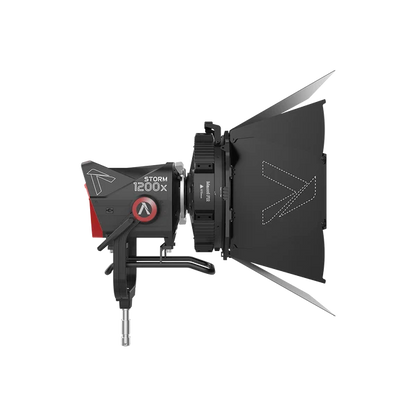

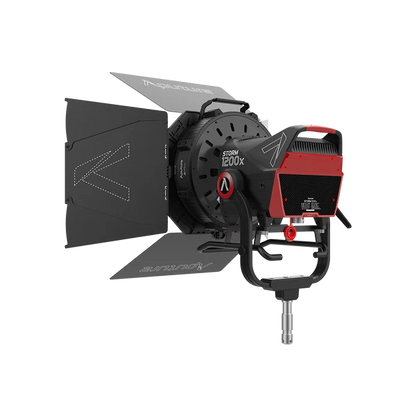

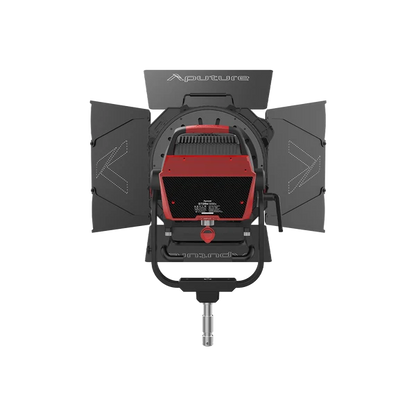

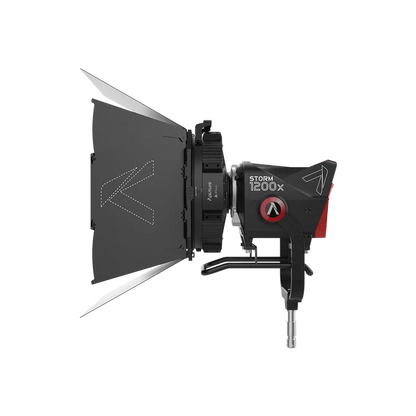

STORM 1200x light kit with CF12 Fresnel, CF12 Barn Doors, and Skid base
The STORM 1200x Cine Kit is designed as a complete system, functioning as a powerful fresnel fixture that is the most compact and lightweight solution with the highest output.
The STORM 1200x and the CF12 were designed together for optimal performance. The CF12 Barn Doors and the STORM 1000c/1200x Skid neatly complete the package. The STORM 1200x Cine Kit is a configuration that many rental clients prefer: a high output, efficient point source LED with a clean fresnel lens.
The CF12 Fresnel was designed alongside the STORM 1200x. The marriage of the fixture’s light engine and the optics of the lens results in a high output beam with even illumination and no color fringing. The advanced optical-mechanical design of the CF12 allows it to function in little space while still delivering peak performance.
The STORM 1200x Cine Kit design minimizes its footprint and weight, allowing users to efficiently store the fully built fixture on truck shelving or equipment carts. The Cine Kit stores upright and ready for use.
STORM 1200x Cine Kit Photometrics
| CCT | Dis. | Bare COB | STORM 1200x + 45° Reflector | STORM 1200x + CF12 at 15° Spot | STORM 1200x + CF12 at 45° Flood |
|---|---|---|---|---|---|
| 2,500K | 3m | 6,570 lux 611 fc | 15,300 lux 1,422 fc | 64,300 lux 5,976 fc | 13,000 lux 1,208 fc |
| 2,500K | 5m | 2,510 lux 233 fc | 5,420 lux 505 fc | 22,400 lux 2,082 fc | 4,760 lux 442 fc |
| 3,200K | 3m | 8,370 lux 778 fc | 19,500 lux 1,812 fc | 82,500 lux 7,667 fc | 16,500 lux 1,533 fc |
| 3,200K | 5m | 3,170 lux 778 fc | 6,910 lux 642 fc | 28,600 lux 2,658 fc | 6,070 lux 564 fc |
| 4,300K | 3m | 8,620 lux 801 fc | 20,100 lux 1,868 fc | 85,300 lux 7,928 fc | 17,100 lux 1,589 fc |
| 4,300K | 5m | 3,280 lux 305 fc | 7,130 lux 663 fc | 29,600 lux 2,751 fc | 6,280 lux 584 fc |
| 5,600K | 3m | 8,490 lux 789 fc | 22,500 lux 2,090 fc | 84,400 lux 7,844 fc | 16,900 lux 1,571 fc |
| 5,600K | 5m | 3,230 lux 300 fc | 7,070 lux 657 fc | 29,300 lux 2,723 fc | 6,230 lux 579 fc |
| 6,500K | 3m | 8,370 lux 778 fc | 19,500 lux 1,812 fc | 83,300 lux 7,742 fc | 16,700 lux 1,552 fc |
| 6,500K | 5m | 3,180 lux 296 fc | 6,910 lux 642 fc | 28,900 lux 2,686 fc | 6,120 lux 569 fc |
| 7,500K | 3m | 8,200 lux 762 fc | 19,100 lux 1,775 fc | 81,900 lux 7,612 fc | 16,300 lux 1,515 fc |
| 7,500K | 5m | 3,120 lux 290 fc | 6,800 lux 632 fc | 28,400 lux 2,639 fc | 6,010 lux 559 fc |
| 10,000K | 3m | 7,790 lux 724 fc | 18,200 lux 1,691 fc | 47,000 lux 4,368 fc | 10,000 lux 929 fc |
| 10,000K | 5m | 2,960 lux 275 fc | 6,470 lux 601 fc | 16,000 lux 1,487 fc | 3,600 lux 335 fc |
What's in the Box?
- 1x STORM 1200x Lamp Head With Yoke
- 1x STORM 1200x Control Box
- 1x 45° Hyper Reflector
- 1x Neutrik PowerCon AC Power Cable (6m)
- 1x Head Cable (7.5m)
- 1x STORM 1200x Rolling Case
- 1x CF12 Fresnel
- 1x CF12 Fresnel Carrying Case
- 1x CF12 Barn Doors
- 1x STORM 1000c/1200x Skid
