Aputure STORM 1000c Cine Kit

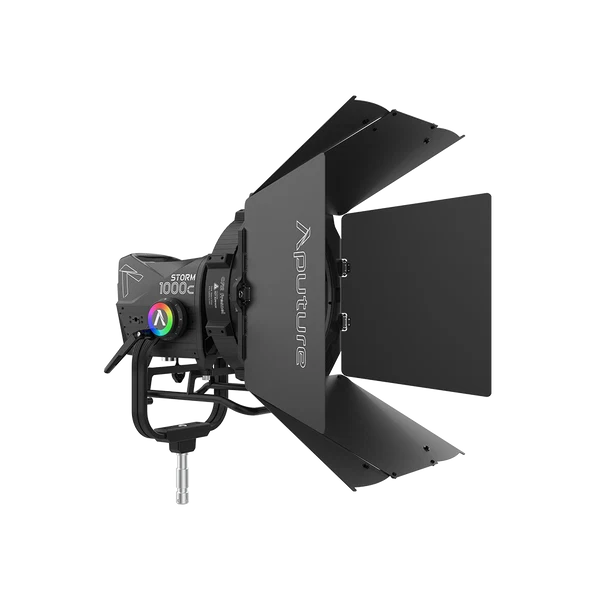

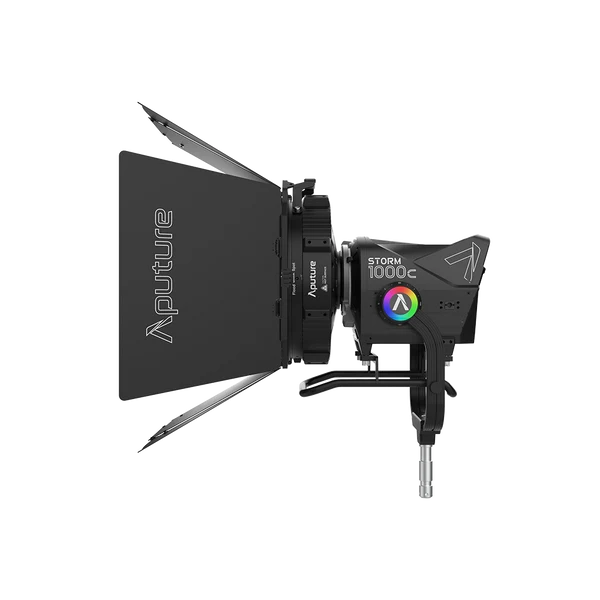

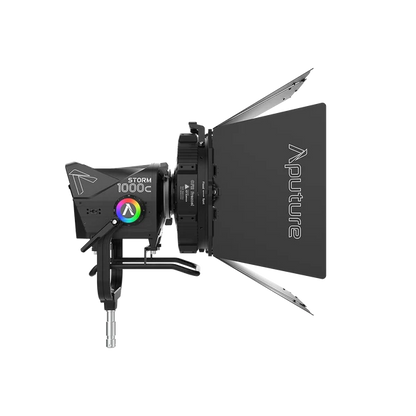

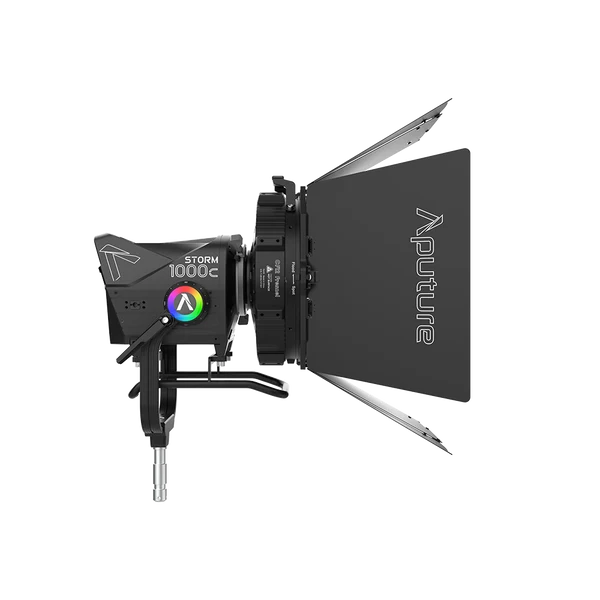

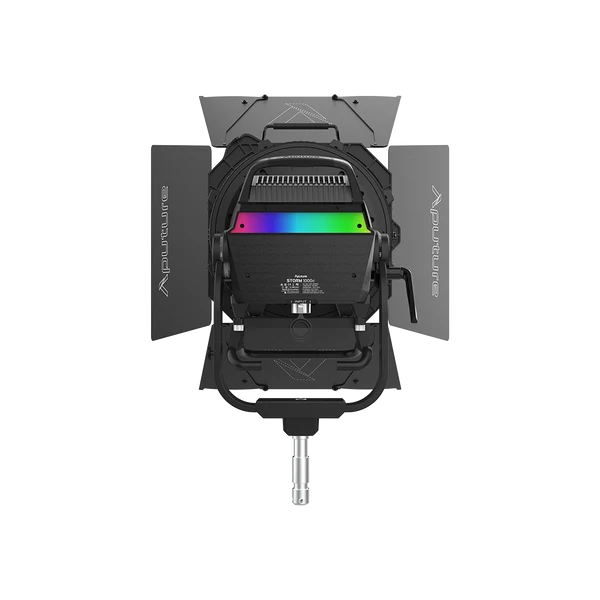

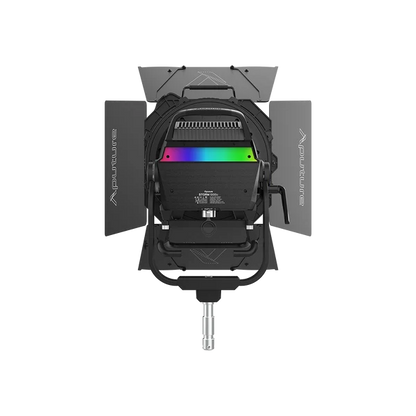

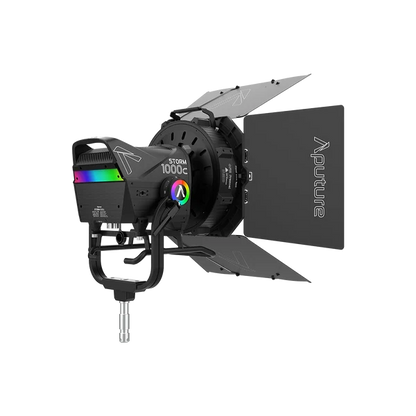

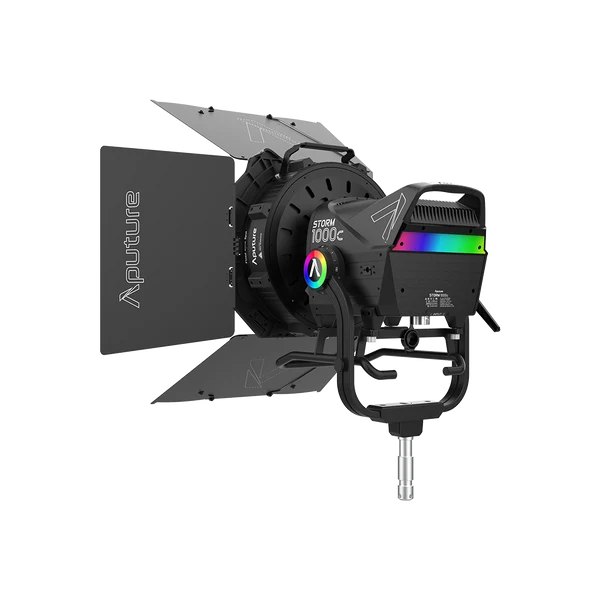

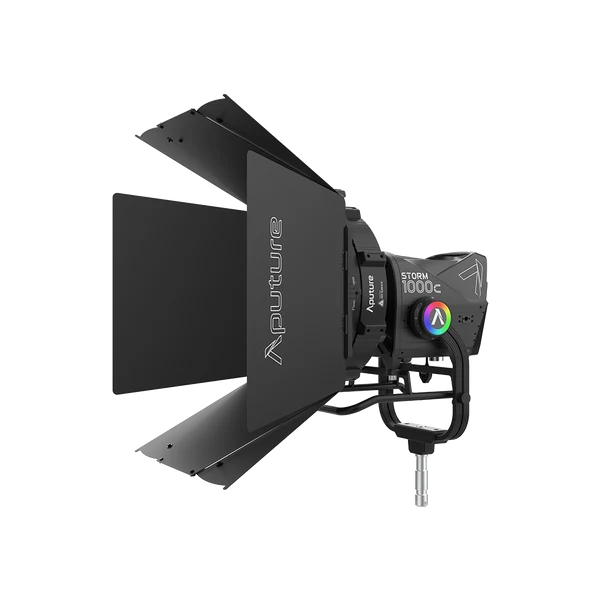

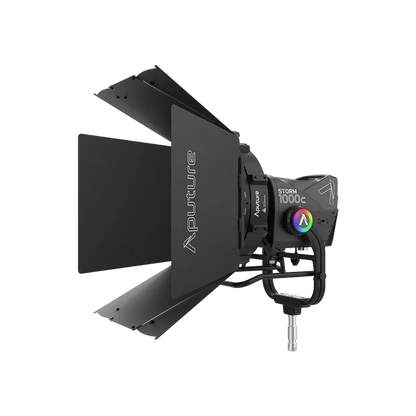

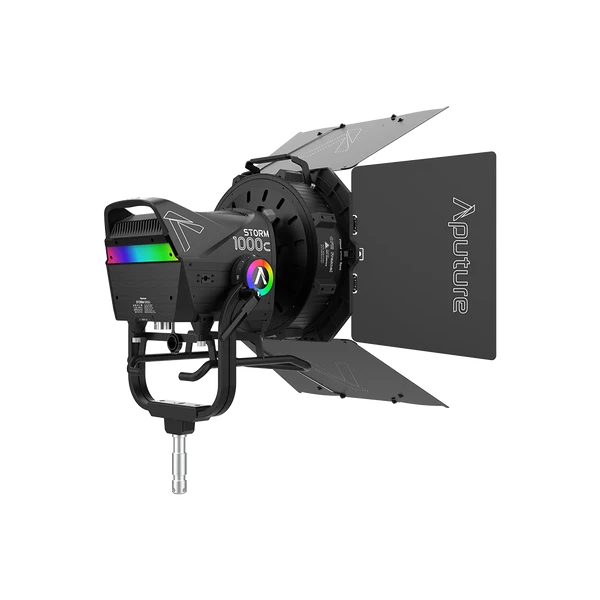

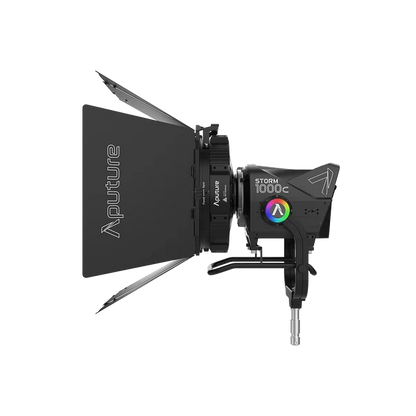

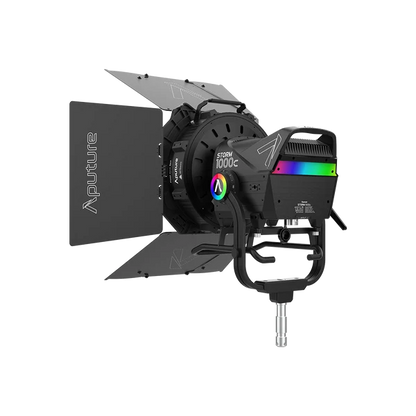

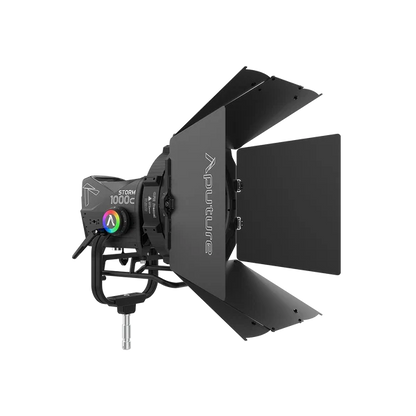

STORM 1000c light kit with CF12 Fresnel, CF12 Barn Doors, and Skid base
The STORM 1000c Cine Kit is designed as a complete system, functioning as a powerful fresnel fixture that is the most compact and lightweight solution with the highest output.
The STORM 1000c and the CF12 were designed together for optimal performance. The CF12 Barn Doors and the STORM 1000c/1200x Skid neatly complete the package. The STORM 1000c Cine Kit is a configuration that many rental clients prefer: a high output, efficient point source LED with a clean fresnel lens.
The CF12 Fresnel was designed alongside the STORM 1000c. The marriage of the fixture’s light engine and the optics of the lens results in a high output beam with even illumination and no color fringing. The advanced optical-mechanical design of the CF12 allows it to function in little space while still delivering peak performance.
The STORM 1000c Cine Kit design minimizes its footprint and weight, allowing users to efficiently store the fully built fixture on truck shelving or equipment carts. The Cine Kit stores upright and ready for use.
STORM 1000c Cine Kit Photometrics
| CCT | Dis. | Bare COB | STORM 1000c + 45° Reflector | STORM 1000c + CF12 at 15° Spot | STORM 1000c + CF12 at 45° Flood |
|---|---|---|---|---|---|
| 1,800K | 3m | 3,500 lux 325 fc | 7,900 lux 734 fc | 32,500 lux 3,020 fc | 6,800 lux 632 fc |
| 1,800K | 5m | 1,350 lux 125 fc | 2,700 lux 251 fc | 11,200 lux 1,041 fc | 2,500 lux 232 fc |
| 3,200K | 3m | 6,500 lux 604 fc | 14,500 lux 4,348 fc | 52,022 lux 4,833 fc | 11,000 lux 1,022 fc |
| 3,200K | 5m | 2,500 lux 232 fc | 5,100 lux 474 fc | 18,000 lux 1,673 fc | 4,000 lux 372 fc |
| 4,300K | 3m | 6,600 lux 613 fc | 14,700 lux 1,366 fc | 60,000 lux 5,576 fc | 12,500 lux 1,162 fc |
| 4,300K | 5m | 2,550 lux 237 fc | 5,200 lux 483 fc | 20,500 lux 1,905 fc | 4,600 lux 428 fc |
| 5,600K | 3m | 6,300 lux 586 fc | 14,200 lux 1,320 fc | 61,000 lux 5,669 fc | 13,000 lux 1,208 fc |
| 5,600K | 5m | 2,450 lux 228 fc | 5,000 lux 465 fc | 21,000 lux 1,952 fc | 4,700 lux 437 fc |
| 6,500K | 3m | 6,200 lux 576 fc | 14,000 lux 1,301 fc | 58,500 lux 5,437 fc | 12,500 lux 1161 fc |
| 6,500K | 5m | 2,350 lux 218 fc | 4,900 lux 455 fc | 20,000 lux 1,859 fc | 4,500 lux 418 fc |
| 10,000K | 3m | 5,200 lux 483 fc | 11,500 lux 1,069 fc | 57,000 lux 5,297 fc | 12,000 lux 1,115 fc |
| 10,000K | 5m | 2,000 lux 186 fc | 4,000 lux 372 fc | 19,500 lux 1,812 fc | 4,300 lux 400 fc |
| 20,000K | 3m | 3,900 lux 362 fc | 8,800 lux 818 fc | 47,000 lux 4,368 fc | 10,000 lux 929 fc |
| 20,000K | 5m | 1,500 lux 139 fc | 3,100 lux 288 fc | 16,000 lux 1,487 fc | 3,600 lux 335 fc |
What's in the Box?
- 1x STORM 1000c Lamp Head With Yoke
- 1x STORM 1000c Control Box
- 1x 45° Hyper Reflector
- 1x Neutrik PowerCon AC Power Cable (6m)
- 1x Head Cable (7.5m)
- 1x STORM 1000c Rolling Case
- 1x CF12 Fresnel
- 1x CF12 Fresnel Carrying Case
- 1x CF12 Barn Doors
- 1x STORM 1000c/1200x Skid
