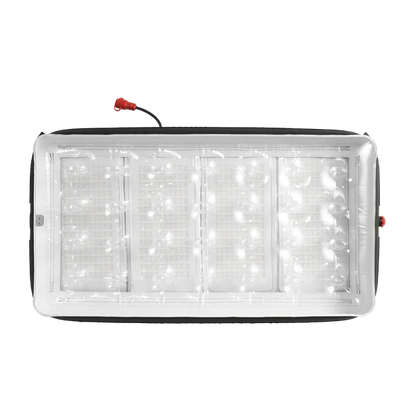

Aputure INFINIMAT 8x8 with Clear Softbox
Complete 8x8ft tunable color mat light system with clear inflatable airbag and 1,600W control box
Save space and time with this versatile, rugged 8x8 foot, 16-pixel mat light system with inflatable airbag for rigidity and diffusion.
INFINIMATs are significantly brighter than competitors of the same size, up to double the intensity. The increased output makes INFINIMAT a production workhorse, even in daylight. INFINIMATs offer a clear airbag with interchangeable diffusion for a smooth surface and selectable softness.
All INFINIMATs are color tunable and are designed to be configured with other INFINIMATs in pixel arrays. The INFINIMAT 8x8 is a 16-pixel mat. INFINIMAT pixels can be controlled over Sidus Link Bluetooth and DMX/CRMX for active motion effects.
INFINIMAT Control Boxes are universal to the family, making swapping sizes or powering arrays on set simple and quick. Control up to 3 INFINIMATs with a 400W Control Box, and up to 5 mats with the 1600W box. The included LP-24 AC power cable features an Edison 5-20P connector.

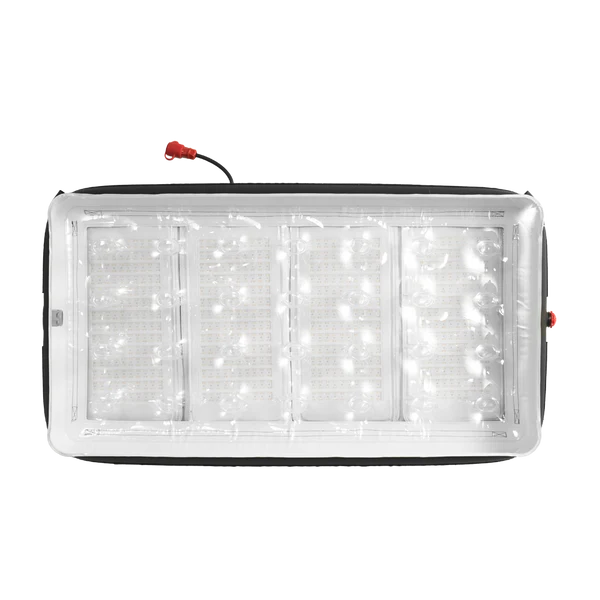

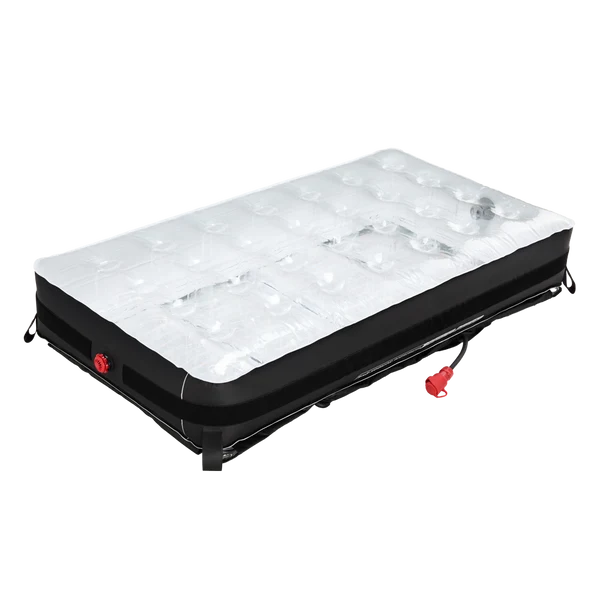

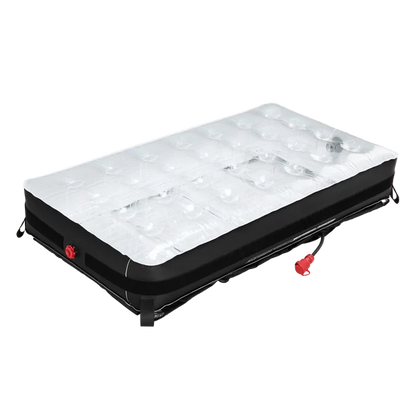

INFINIMAT can be used with or without the airbag, strapped in place, or mounted to its frame. The airbag quickly inflates and takes up less space on set than traditional diffusion rigs. When not in use, the INFINIMAT packs down small for storage or travel.
Double the Output
INFINIMATs are significantly higher in brightness than competitors of the same size, up to double the intensity. The increased output makes INFINIMATs useful in a variety of production settings, even in daylight. INFINIMATs offer a clear airbag with optional diffusion for a smooth finish and selectable softness.
One Controller, Infinite Options
INFINIMAT Control Boxes are universal to the family, making swapping sizes or powering arrays on set simple and quick. Control up to three INFINIMATs with the Control Box 400W, and up to five mats with the Control Box 1600W.
Infinite Shapes, Minimal Size
INFINIMAT can be used with or without the airbag, strapped in place, or mounted to its frame. The airbag quickly inflates and takes up less space on set than traditional diffusion rigs. When not in use, the INFINIMAT packs down small for storage or travel.
Pixel Control at Scale
All INFINIMATs are color tunable and are designed to be configured with other INFINIMATs in pixel arrays. INFINIMAT pixels can be controlled over Sidus Link Bluetooth and DMX/CRMX for active motion effects.
Rental Grade Construction
INFINIMATs are designed to last. IP65 weather protection means a sealed system, which also includes metal backing plates for heat dispersion, rigidity, and physical protection for the LEDs. The internal design of the mats and control box are modular for easy service.
Ultra Low Dimming
The INFINIMATs utilize a dual-dimming internal control system which allows them to dim to extremely low levels without color shift and with fine gradients for a smooth transition. Dimming to as low as 0.1% is possible, up to ten times dimmer than the competition.
Portable Travel Kits
INFINIMATs can store inside their travel cases for shipping and when on set can be staged in their included zipper bags, taking up little space while ready for use. On the 4x4 and smaller sizes the airbag stores deflated on the mat, saving setup time and storage space.
INFINIMAT 8x8 Photometrics
| CCT | Dis. | No Modifier | Airbag + 1 Stop Diffusion | Airbag + 1 Stop Diffusion With Grid | Airbag + 2 Stop Diffusion | Airbag + 2 Stop Diffusion With Grid |
|---|---|---|---|---|---|---|
| 2,000K | 1m | 20,410 lux 1,896 fc | 15,210 lux 1,413 fc | 8,620 lux 801 fc | 12,880 lux 1,196 fc | 7,200 lux 669 fc |
| 2,000K | 3m | 5,500 lux 511 fc | 3,930 lux 365 fc | 3,070 lux 285 fc | 3,350 lux 311 fc | 2,560 lux 238 fc |
| 3,200K | 1m | 25,160 lux 2,336 fc | 18,790 lux 1,746 fc | 10,290 lux 956 fc | 15,730 lux 1,462 fc | 8,670 lux 805 fc |
| 3,200K | 3m | 6,660 lux 619 fc | 4,790 lux 445 fc | 3,730 lux 346 fc | 4,100 lux 381 fc | 3,110 lux 289 fc |
| 4,300K | 1m | 26,380 lux 2,450 fc | 20,070 lux 1,864 fc | 11,120 lux 1,033 fc | 16,790 lux 1,559 fc | 9,090 lux 844 fc |
| 4,300K | 3m | 6,990 lux 649 fc | 5,040 lux 468 fc | 4,010 lux 373 fc | 4,310 lux 400 fc | 3,270 lux 304 fc |
| 5,600K | 1m | 27,790 lux 2,581 fc | 20,550 lux 1,909 fc | 11,380 lux 1,057 fc | 17,260 lux 1,603 fc | 9,600 lux 892 fc |
| 5,600K | 3m | 7,301 lux 678 fc | 5,300 lux 492 fc | 4,090 lux 380 fc | 4,530 lux 421 fc | 3,450 lux 321 fc |
| 6,500K | 1m | 27,550 lux 2,559 fc | 20,440 lux 1,899 fc | 11,370 lux 1,056 fc | 17,330 lux 1,610 fc | 9,550 lux 887 fc |
| 6,500K | 3m | 7,300 lux 678 fc | 5,290 lux 492 fc | 4,080 lux 379 fc | 4,520 lux 420 fc | 3,430 lux 319 fc |
| 10,000K | 1m | 25,280 lux 2,348 fc | 18,960 lux 1,761 fc | 10,530 lux 978 fc | 16,020 lux 1,488 fc | 8,850 lux 822 fc |
| 10,000K | 3m | 6,750 lux 627 fc | 4,910 lux 456 fc | 3,780 lux 351 fc | 4,190 lux 389 fc | 3,260 lux 303 fc |

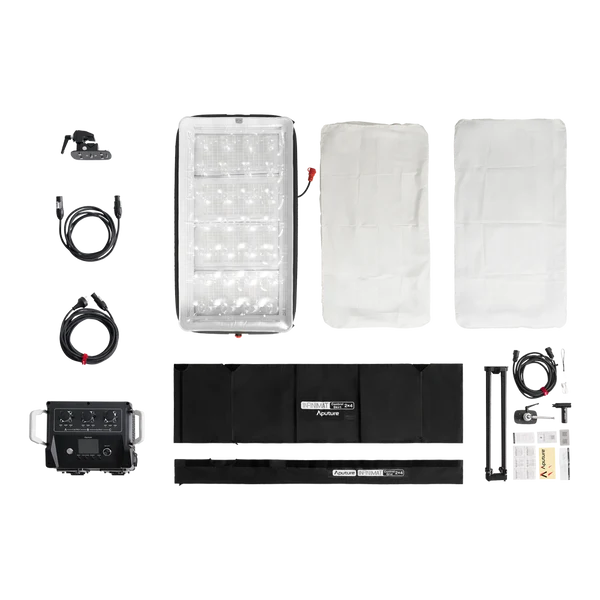

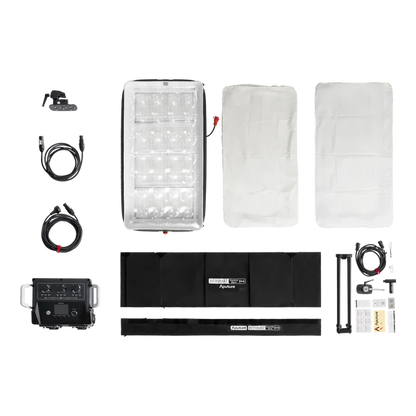

What's in the Box?

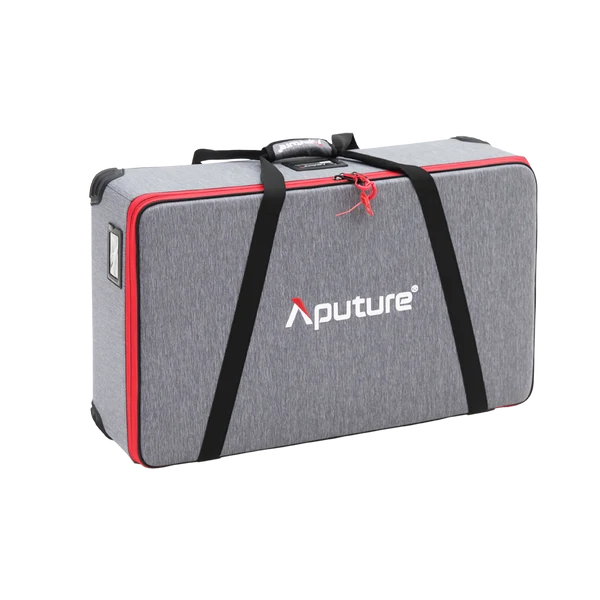

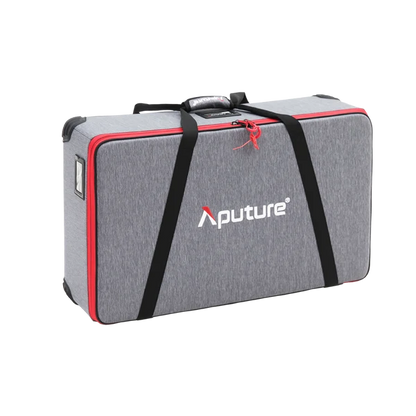

1x Flight Case for INFINIMAT LED & Clear Softbox 8x8
1x Aputure INFINIMAT Only 8x8
1x Aputure INFINIMAT 15m Head Cable (1600W)

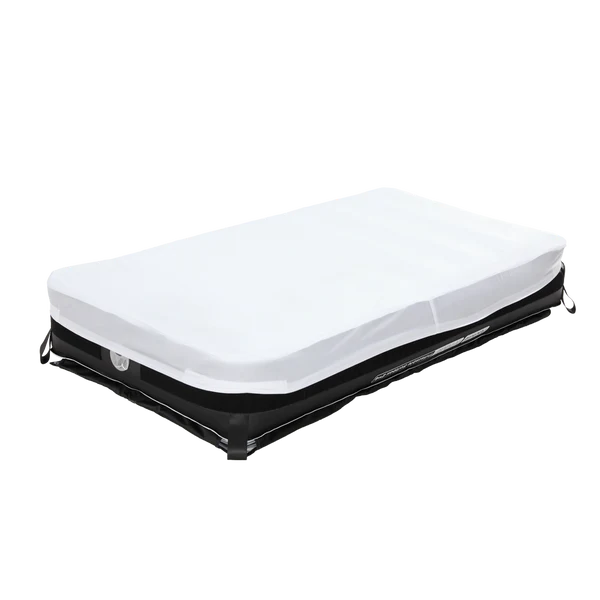

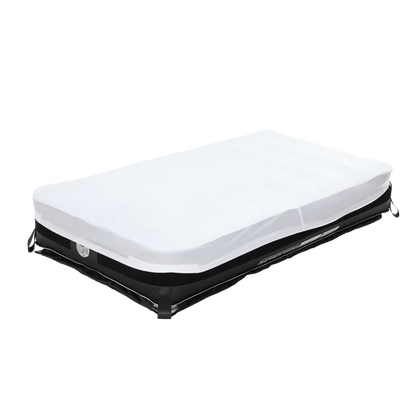

1x Aputure INFINIMAT Inflatable Clear Softbox 8x8
1x INFINIMAT Diffusion Cloth (1 Stop) 8x8
1x INFINIMAT Diffusion Cloth (2 Stop) 8x8
1x Aputure INFINIMAT Control Skirt 8x8
1x Carrying Case for Control Grid 8x8
1x Aputure INFINIMAT Control Grid 8x8
1x Aputure INFINIMAT Patch Kit
1x Aputure INFINIMAT Air Pump Max
1x Aputure INFINIMAT Cushion 8x8
1x Rolling Case for Control Box 1600w Pack
1x Aputure INFINIMAT Control Box 1600W
1x LP-24 AC Power Cable
1x Safety Rope (1.3m)
