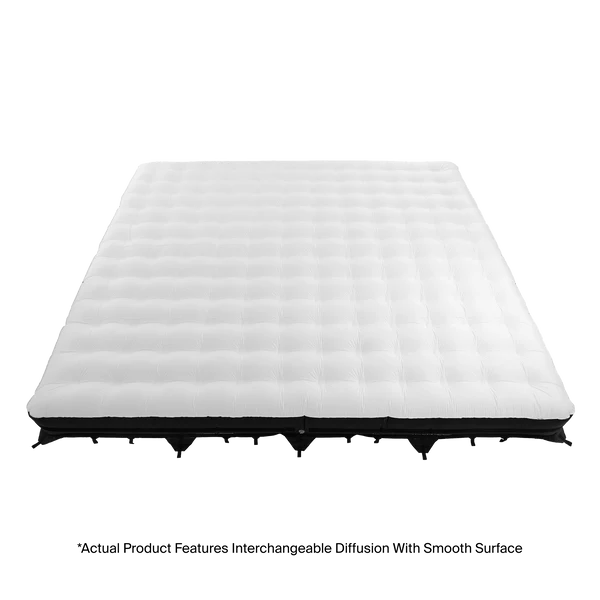

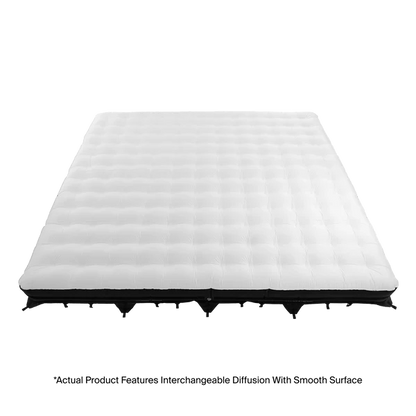

Complete 20x20ft tunable color mat light system with clear inflatable airbags and four 1,600W control boxes.

Save space and time with this versatile, rugged 20x20 mat light system with inflatable airbags for rigidity and diffusion.

All-in-One Soft Light

The 20x20 INFINIMAT sets up and breaks down in minutes rather than hours. The kit contains fewer parts compared to traditional large soft box rigs and uses one truss frame instead of two. Since the airbag creates the structure, the 20x20 INFINIMAT is a singular unit when built, so you can even mount it to rolling stands to create a movable wall of light.

One 20x20, Four 8x8 INFINIMATs

The 20x20 INFINIMAT is comprised of four complete 8x8 INFINIMAT kits, including four 1600W Control Boxes, four 8x8 mats, four 8x8 airbags, the 20x20 airbag, and interchangeable diffusion in both sizes. Use as a single 20x20 INFINIMAT or separate into four 8x8 INFINIMAT kits when needed. The four included LP-24 AC power cables feature Edison 5-20P connectors.

64 Programmable Pixels

Create more natural soft light with gradients of color and intensity, or use image-based lighting with motion effects. The 20x20 INFINIMAT can be controlled through DMX and other programmable systems.

xyz

All-in-One Soft Light

The 20x20 INFINIMAT sets up and breaks down in minutes rather than hours. The kit contains fewer parts compared to traditional large soft box rigs and uses one truss frame instead of two. Since the airbag creates the structure, the 20x20 INFINIMAT is a singular unit when built, so you can even mount it to rolling stands to create a movable wall of light.

xyz

One 20x20, Four 8x8 INFINIMATs

The 20x20 INFINIMAT is comprised of four complete 8x8 INFINIMAT kits, including four 1600W Control Boxes, four 8x8 mats, four 8x8 airbags, the 20x20 airbag, and interchangeable diffusion in both sizes. Use as a single 20x20 INFINIMAT or separate into four 8x8 INFINIMAT kits when needed.

xyz

64 Programmable Pixels

Create more natural soft light with gradients of color and intensity, or use image-based lighting with motion effects. The 20x20 INFINIMAT can be controlled through DMX and other programmable systems.

xyz

Rental Grade Construction

INFINIMATs are designed to last. IP65 weather protection means a sealed system, which also includes metal backing plates for heat dispersion, rigidity, and physical protection for the LEDs. The internal design of the mats and control box are modular for easy service.

xyz

Ultra Low Dimming

The INFINIMATs utilize a dual-dimming internal control system which allows them to dim to extremely low levels without color shift and with fine gradients for a smooth transition. Dimming to as low as 0.1% is possible, up to ten times dimmer than the competition.

INFINIMAT Setup Guide

Watch this video tutorial to learn how to set up all sizes of INFINIMATS.

INFINIMAT Setup Guide

INFINIMAT 20x20 Photometrics

CCT Dis. No Modifier Airbag + 1 Stop Diffusion Airbag + 1 Stop Diffusion With Grid Airbag + 2 Stop Diffusion Airbag + 2 Stop Diffusion With Grid
2,000K 5m 5,224 lux 485 fc 3,612 lux 336 fc 1,933 lux 180 fc 3,075 lux 286 fc 1,613 lux 150 fc
2,000K 7m 2,664 lux 247 fc 1,842 lux 171 fc 986 lux 92 fc 1,568 lux 146 fc 822 lux 76 fc
3,200K 5m 6,814 lux 633 fc 4,709 lux 437 fc 2,914 lux 271 fc 3,996 lux 371 fc 2,425 lux 225 fc
3,200K 7m 3,475 lux 323 fc 2,402 lux 223 fc 1,486 lux 138 fc 2,038 lux 189 fc 1,237 lux 115 fc
4,300K 5m 6,990 lux 649 fc 4,856 lux 451 fc 2,982 lux 277 fc 4,122 lux 383 fc 2,499 lux 232 fc
4,300K 7m 3,565 lux 331 fc 2,476 lux 230 fc 1,521 lux 141 fc 2,102 lux 195 fc 1,275 lux 118 fc
5,600K 5m 7,245 lux 673 fc 5,062 lux 470 fc 3,381 lux 314 fc 4,273 lux 397 fc 2,819 lux 262 fc
5,600K 7m 3,695 lux 343 fc 2,582 lux 240 fc 1,724 lux 160 fc 2,179 lux 202 fc 1,438 lux 134 fc
6,500K 5m 7,693 lux 715 fc 5,356 lux 498 fc 3,576 lux 332 fc 4,540 lux 422 fc 3,009 lux 280 fc
6,500K 7m 3,923 lux 364 fc 2,731 lux 254 fc 1,824 lux 169 fc 2,315 lux 215 fc 1,535 lux 143 fc
10,000K 5m 6,873 lux 649 fc 4,809 lux 447 fc 3,282 lux 305 fc 4,072 lux 378 fc 2,758 lux 256 fc
10,000K 7m 3,505 lux 326 fc 2,452 lux 228 fc 1,674 lux 156 fc 2,077 lux 193 fc 1,406 lux 131 fc

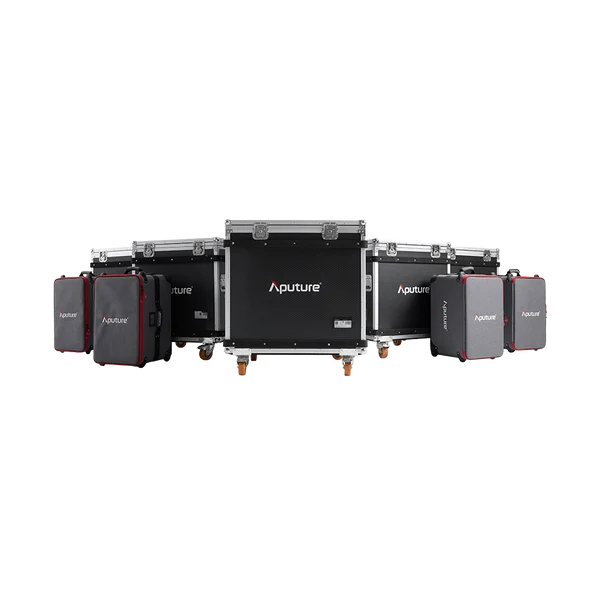

What's in the Box?

  • 4x Flight Case for INFINIMAT LED & Clear Softbox 8x8
  • 4x Aputure INFINIMAT Only 8x8
  • 4x Aputure INFINIMAT 15m Head Cable (1600W)
  • 4x Aputure INFINIMAT Inflatable Clear Softbox 8x8
  • 4x INFINIMAT Diffusion Cloth (1 Stop) 8x8
  • 4x INFINIMAT Diffusion Cloth (2 Stop) 8x8
  • 4x Aputure INFINIMAT Control Skirt 8x8
  • 4x Carrying Case for Control Grid 8x8
  • 4x Aputure INFINIMAT Control Grid 8x8
  • 4x Aputure INFINIMAT Patch Kit
  • 4x Aputure INFINIMAT Air Pump Max
  • 4x Aputure INFINIMAT Cushion 8x8
  • 4x Rolling Case for Control Box 1600w Pack
  • 4x Aputure INFINIMAT Control Box 1600W
  • 4x LP-24 AC Power Cable
  • 4x Safety Rope (1.3m)
  • 1x Flight Case for INFINIMAT Inflatable Clear Softbox Pack 20x20
  • 1x Aputure INFINIMAT Inflatable Clear Softbox 20x20
  • 1x INFINIMAT Diffusion Cloth (1 Stop) 20x20
  • 1x INFINIMAT Diffusion Cloth (2 Stop) 20x20
  • 1x Aputure INFINIMAT Light Control Skirt 20x20
  • 1x Aputure INFINIMAT Light Control Grid 20x20
  • 1x Aputure INFINIMAT Cushion 20x20
