Aputure INFINIMAT 1x4 with Clear Softbox
Complete 1x4ft tunable color mat light system with clear inflatable airbag and 400W control box
Save space and time with this versatile, rugged 1x4 foot, 2-pixel mat light system with inflatable airbag for rigidity and diffusion.
INFINIMATs are significantly brighter than competitors of the same size, up to double the intensity. The increased output makes INFINIMAT a production workhorse, even in daylight. INFINIMATs offer a clear airbag with interchangeable diffusion for a smooth surface and selectable softness.
All INFINIMATs are color tunable and are designed to be configured with other INFINIMATs in pixel arrays. The INFINIMAT 1x4 is a 2-pixel mat. INFINIMAT pixels can be controlled over Sidus Link Bluetooth and DMX/CRMX for active motion effects.
INFINIMAT Control Boxes are universal to the family, making swapping sizes or powering arrays on set simple and quick. Control up to 3 INFINIMATs with a 400W Control Box, and up to 5 mats with the 1600W box.
INFINIMAT can be used with or without the airbag, strapped in place, or mounted to its frame. The airbag quickly inflates and takes up less space on set than traditional diffusion rigs. When not in use, the INFINIMAT packs down small for storage or travel.
Double the Output
INFINIMATs are significantly higher in brightness than competitors of the same size, up to double the intensity. The increased output makes INFINIMATs useful in a variety of production settings, even in daylight. INFINIMATs offer a clear airbag with optional diffusion for a smooth finish and selectable softness.
One Controller, Infinite Options
INFINIMAT Control Boxes are universal to the family, making swapping sizes or powering arrays on set simple and quick. Control up to three INFINIMATs with the Control Box 400W, and up to five mats with the Control Box 1600W.
Infinite Shapes, Minimal Size
INFINIMAT can be used with or without the airbag, strapped in place, or mounted to its frame. The airbag quickly inflates and takes up less space on set than traditional diffusion rigs. When not in use, the INFINIMAT packs down small for storage or travel.
Pixel Control at Scale
All INFINIMATs are color tunable and are designed to be configured with other INFINIMATs in pixel arrays. INFINIMAT pixels can be controlled over Sidus Link Bluetooth and DMX/CRMX for active motion effects.
Rental Grade Construction
INFINIMATs are designed to last. IP65 weather protection means a sealed system, which also includes metal backing plates for heat dispersion, rigidity, and physical protection for the LEDs. The internal design of the mats and control box are modular for easy service.
Ultra Low Dimming
The INFINIMATs utilize a dual-dimming internal control system which allows them to dim to extremely low levels without color shift and with fine gradients for a smooth transition. Dimming to as low as 0.1% is possible, up to ten times dimmer than the competition.
Portable Travel Kits
INFINIMATs can store inside their travel cases for shipping and when on set can be staged in their included zipper bags, taking up little space while ready for use. On the 4x4 and smaller sizes the airbag stores deflated on the mat, saving setup time and storage space.
INFINIMAT Setup Guide
Watch this video tutorial to learn how to set up all sizes of INFINIMATS.
INFINIMAT 1x4 Photometrics
| CCT | Dis. | No Modifier | Airbag + 1 Stop Diffusion | Airbag + 1 Stop Diffusion With Grid | Airbag + 2 Stop Diffusion | Airbag + 2 Stop Diffusion With Grid | Rigid Softbox + 1 Stop Diffusion | Rigid Softbox + 1 Stop Diffusion With Grid | Rigid Softbox + 2 Stop Diffusion | Rigid Softbox + 2 Stop Diffusion With Grid |
|---|---|---|---|---|---|---|---|---|---|---|
| 2,000K | 1m | 4,190 lux 389 fc | 3,230 lux 300 fc | 2,015 lux 187 fc | 2,448 lux 227 fc | 1,590 lux 148 fc | 3,320 lux 308 fc | 2,371 lux 220 fc | 2,730 lux 254 fc | 2,064 lux 192 fc |
| 2,000K | 3m | 612 lux 57 fc | 361 lux 34 fc | 273 lux 25 fc | 310 lux 29 fc | 235 lux 22 fc | 433 lux 40 fc | 371 lux 34 fc | 341 lux 32 fc | 282 lux 26 fc |
| 3,200K | 1m | 4,990 lux 464 fc | 3,890 lux 362 fc | 2,454 lux 228 fc | 3,000 lux 279 fc | 1,947 lux 181 fc | 3,960 lux 368 fc | 2,874 lux 267 fc | 3,320 lux 308 fc | 2,528 lux 235 fc |
| 3,200K | 3m | 727 lux 68 fc | 436 lux 41 fc | 329 lux 31 fc | 375 lux 35 fc | 288 lux 27 fc | 518 lux 48 fc | 447 lux 42 fc | 412 lux 38 fc | 344 lux 32 fc |
| 4,300K | 1m | 5,120 lux 476 fc | 3,910 lux 363 fc | 2,470 lux 229 fc | 3,020 lux 281 fc | 1,962 lux 182 fc | 3,980 lux 368 fc | 2,890 lux 269 fc | 3,450 lux 320 fc | 2,542 lux 236 fc |
| 4,300K | 3m | 730 lux 68 fc | 439 lux 41 fc | 331 lux 31 fc | 377 lux 35 fc | 289 lux 27 fc | 534 lux 50 fc | 449 lux 42 fc | 429 lux 40 fc | 357 lux 33 fc |
| 5,600K | 1m | 5,440 lux 505 fc | 4,270 lux 397 fc | 2,696 lux 250 fc | 3,320 lux 308 fc | 2,143 lux 199 fc | 4,340 lux 403 fc | 3,150 lux 293 fc | 3,650 lux 339 fc | 2,775 lux 258 fc |
| 5,600K | 3m | 794 lux 74 fc | 478 lux 44 fc | 362 lux 34 fc | 412 lux 38 fc | 316 lux 29 fc | 570 lux 53 fc | 490 lux 46 fc | 453 lux 42 fc | 377 lux 35 fc |
| 6,500K | 1m | 5,390 lux 501 fc | 4,230 lux 393 fc | 2,673 lux 248 fc | 3,290 lux 306 fc | 2,124 lux 197 fc | 4,300 lux 399 fc | 3,120 lux 290 fc | 3,610 lux 336 fc | 2,748 lux 255 fc |
| 6,500K | 3m | 786 lux 73 fc | 475 lux 44 fc | 358 lux 33 fc | 409 lux 38 fc | 313 lux 29 fc | 564 lux 52 fc | 486 lux 45 fc | 449 lux 42 fc | 374 lux 35 fc |
| 10,000K | 1m | 5,010 lux 466 fc | 3,950 lux 367 fc | 2,497 lux 232 fc | 3,060 lux 284 fc | 1,985 lux 184 fc | 4,020 lux 373 fc | 2,910 lux 271 fc | 3,380 lux 314 fc | 2,574 lux 239 fc |
| 10,000K | 3m | 731 lux 68 fc | 443 lux 41 fc | 335 lux 31 fc | 382 lux 35 fc | 293 lux 27 fc | 529 lux 49 fc | 454 lux 42 fc | 421 lux 39 fc | 349 lux 32 fc |

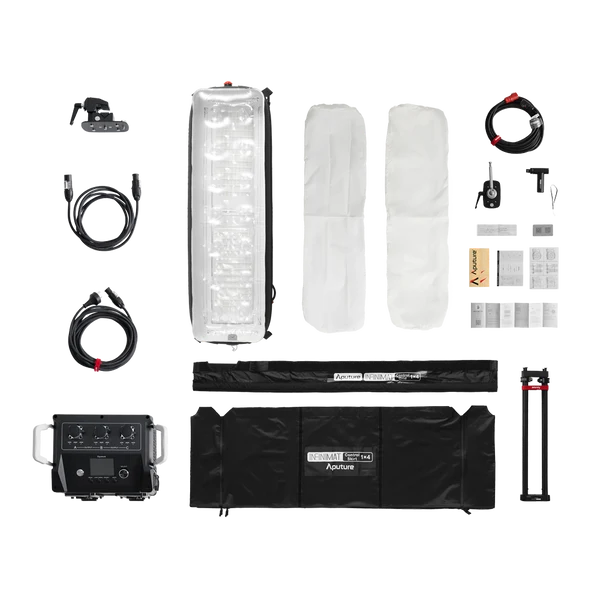

What's in the Box?

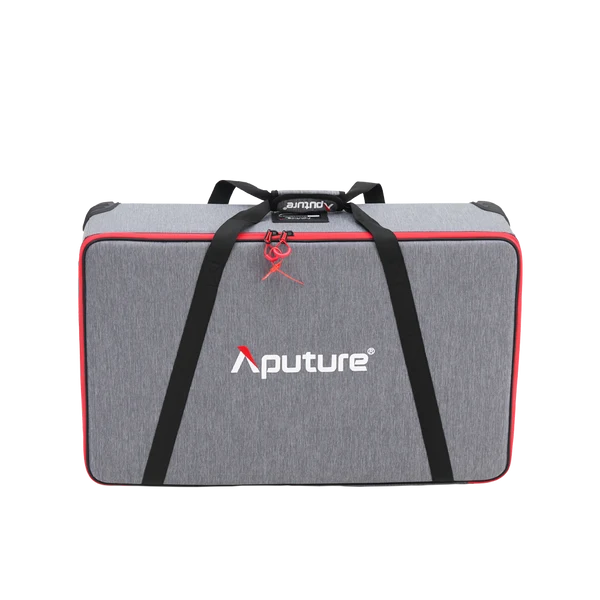

- 1x Carrying Case for INFINIMAT LED & Clear Softbox

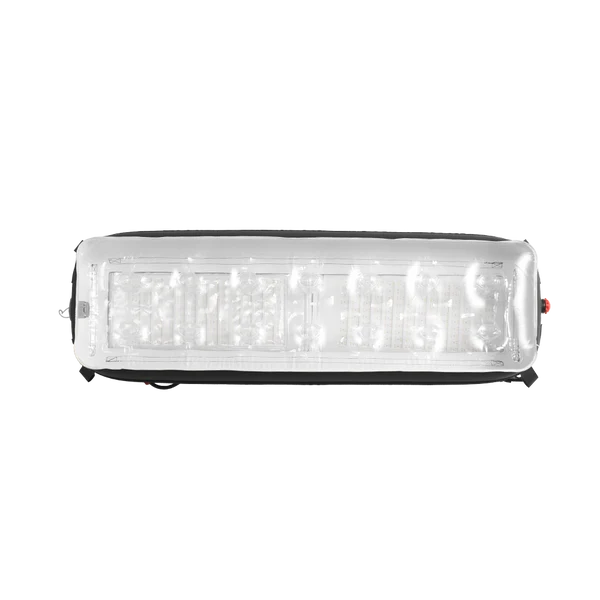

- 1x Aputure INFINIMAT Only 1x4
- 1x Aputure INFINIMAT 7.5m Head Cable (400W)
- 1x Aputure INFINIMAT Carbon Fiber Mounting Bracket 1x4
- 1x Aputure K-Mount Arm w/ Straight 5/8” Pin

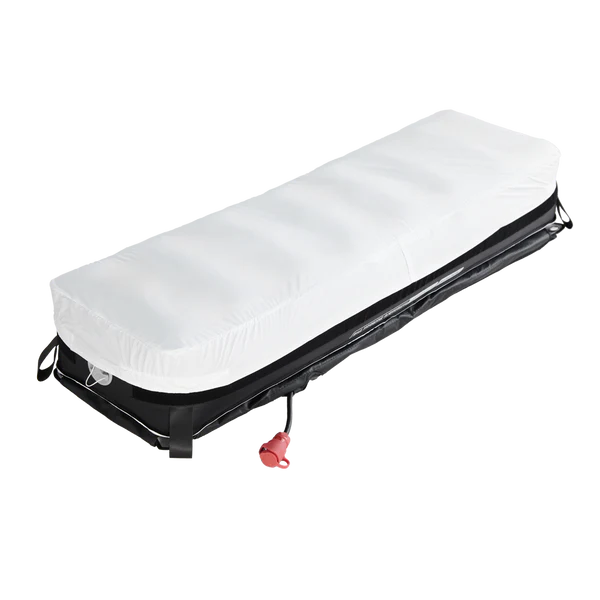

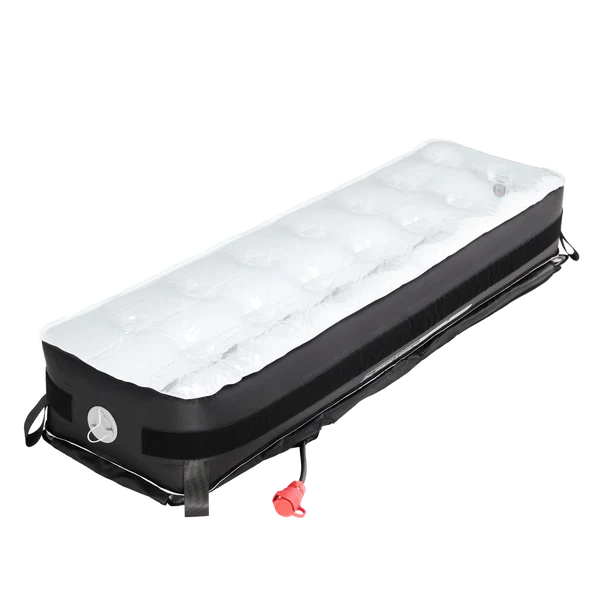

- 1x Aputure INFINIMAT Inflatable Clear Softbox 1x4
- 1x INFINIMAT Diffusion Cloth (1 Stop) 1x4
- 1x INFINIMAT Diffusion Cloth (2 Stop) 1x4
- 1x Aputure INFINIMAT Control Skirt 1x4
- 1x Aputure INFINIMAT Control Grid 1x4
- 1x Aputure INFINIMAT Patch Kit
- 1x Aputure INFINIMAT Air Pump Mini
- 1x Carrying Case for Control Box 400W Pack
- 1x Aputure INFINIMAT Control Box 400W (V or Gold Mount)
- 1x Aputure Power CON Cable – 6m
- 1x Aputure K-Mount Style Mounting Clamp
